薄壁轴承

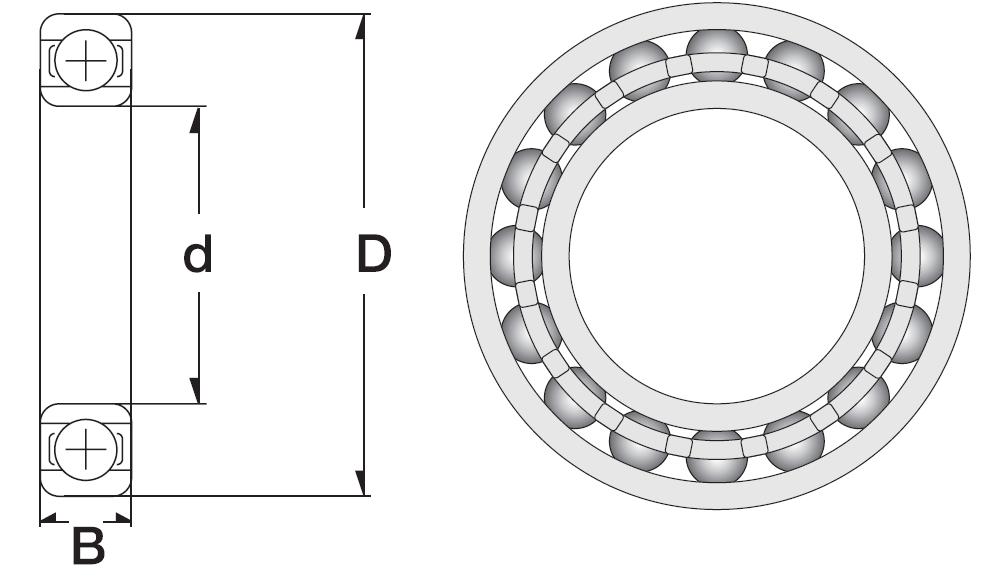

thin section drawing
Reference
d = inner ring dimension
D = Outer ring dimension
B = Bearing width
PDF file
Ref Edge Type d D B Load Rating Limiting Speed Cage Weight OR Material IR Material Ball Material
dynamic static grease oil
61700 technical drawing 61700 standard 10.00 15.00 3.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
61700 C3 technical drawing 61700 C3 standard 10.00 15.00 3.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
SF61700 technical drawing SF61700 flanged 10.00 15.00 3.00 855 435 15 17 W 2 AISI440 AISI440 AISI440
F61700 technical drawing F61700 flanged 10.00 15.00 3.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
S61700 technical drawing S61700 standard 10.00 15.00 3.00 855 435 15 17 W 2 AISI440 AISI440 AISI440
61700-2RS C3 technical drawing 61700-2RS C3 standard 10.00 15.00 4.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
61700-2Z C3 technical drawing 61700-2Z C3 standard 10.00 15.00 4.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
SF61700-2RS technical drawing SF61700-2RS flanged 10.00 15.00 4.00 855 435 15 17 W 2 AISI440 AISI440 AISI440
F61700-2RS technical drawing F61700-2RS flanged 10.00 15.00 4.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
SF61700-2Z technical drawing SF61700-2Z flanged 10.00 15.00 4.00 855 435 15 17 W 2 AISI440 AISI440 AISI440
F61700-2Z technical drawing F61700-2Z flanged 10.00 15.00 4.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
61700-2Z technical drawing 61700-2Z standard 10.00 15.00 4.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
S61700-2Z technical drawing S61700-2Z standard 10.00 15.00 4.00 855 435 15 17 W 2 AISI440 AISI440 AISI440
61700-2RS technical drawing 61700-2RS standard 10.00 15.00 4.00 855 435 15 17 W 2 AISI52100 AISI52100 AISI52100
S61700-2RS technical drawing S61700-2RS standard 10.00 15.00 4.00 855 435 15 17 W 2 AISI440 AISI440 AISI440
61800 C3 technical drawing 61800 C3 standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
61800-2Z C3 technical drawing 61800-2Z C3 standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
61800-2RS C3 technical drawing 61800-2RS C3 standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
SF61800-2RS technical drawing SF61800-2RS flanged 10.00 19.00 5.00 1716 840 37 43 J 6 AISI440 AISI440 AISI440
F61800-2RS technical drawing F61800-2RS flanged 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
SF61800-2Z technical drawing SF61800-2Z flanged 10.00 19.00 5.00 1716 840 37 43 J 6 AISI440 AISI440 AISI440
F61800-2Z technical drawing F61800-2Z flanged 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
61800 technical drawing 61800 standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
S61800 technical drawing S61800 standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI440 AISI440 AISI440
61800-2Z technical drawing 61800-2Z standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
S61800-2Z technical drawing S61800-2Z standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI440 AISI440 AISI440
S61800-2RS technical drawing S61800-2RS standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI440 AISI440 AISI440
F61800 technical drawing F61800 flanged 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
SF61800 technical drawing SF61800 flanged 10.00 19.00 5.00 1716 840 37 43 J 6 AISI440 AISI440 AISI440
61800-2RS technical drawing 61800-2RS standard 10.00 19.00 5.00 1716 840 37 43 J 6 AISI52100 AISI52100 AISI52100
62800-2Z technical drawing 62800-2Z standard 10.00 19.00 6.00 - - - - J 7 AISI52100 AISI52100 AISI52100
62800-2RS C3 technical drawing 62800-2RS C3 standard 10.00 19.00 6.00 - - - - J 7 AISI52100 AISI52100 AISI52100
62800 technical drawing 62800 standard 10.00 19.00 6.00 - - - - J 7 AISI52100 AISI52100 AISI52100
62800-2RS technical drawing 62800-2RS standard 10.00 19.00 6.00 - - - - J 7 AISI52100 AISI52100 AISI52100
62800-2Z C3 technical drawing 62800-2Z C3 standard 10.00 19.00 6.00 - - - - J 7 AISI52100 AISI52100 AISI52100
F63800 technical drawing F63800 flanged 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
63800-2RS C3 technical drawing 63800-2RS C3 standard 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
63800 C3 technical drawing 63800 C3 standard 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
S63800-2Z technical drawing S63800-2Z standard 10.00 19.00 7.00 1716 840 37 43 J 8 AISI440 AISI440 AISI440
63800 technical drawing 63800 standard 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
63800-2Z technical drawing 63800-2Z standard 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
S63800 technical drawing S63800 standard 10.00 19.00 7.00 1716 840 37 43 J 8 AISI440 AISI440 AISI440
63800-2Z C3 technical drawing 63800-2Z C3 standard 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
63800-2RS technical drawing 63800-2RS standard 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
SF63800 technical drawing SF63800 flanged 10.00 19.00 7.00 1716 840 37 43 J 8 AISI440 AISI440 AISI440
F63800-2Z technical drawing F63800-2Z flanged 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
SF63800-2Z technical drawing SF63800-2Z flanged 10.00 19.00 7.00 1716 840 37 43 J 8 AISI440 AISI440 AISI440
F63800 C3 technical drawing F63800 C3 flanged 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
SF63800-2Z C3 technical drawing SF63800-2Z C3 flanged 10.00 19.00 7.00 1716 840 37 43 J 8 AISI440 AISI440 AISI440
F63800-2Z C3 technical drawing F63800-2Z C3 flanged 10.00 19.00 7.00 1716 840 37 43 J 8 AISI52100 AISI52100 AISI52100
SF63800 C3 technical drawing SF63800 C3 flanged 10.00 19.00 7.00 1716 840 37 43 J 8 AISI440 AISI440 AISI440
61900 C3 technical drawing 61900 C3 standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI52100 AISI52100 AISI52100
61900-2RS C3 technical drawing 61900-2RS C3 standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI52100 AISI52100 AISI52100
SF61900 technical drawing SF61900 flanged 10.00 22.00 6.00 2695 1273 34 41 J 11 AISI440 AISI440 AISI440
61900-2Z C3 technical drawing 61900-2Z C3 standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI52100 AISI52100 AISI52100
SF61900-2RS technical drawing SF61900-2RS flanged 10.00 22.00 6.00 2695 1273 34 41 J 11 AISI440 AISI440 AISI440
61900 technical drawing 61900 standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI52100 AISI52100 AISI52100
S61900 technical drawing S61900 standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI440 AISI440 AISI440
61900-2Z technical drawing 61900-2Z standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI52100 AISI52100 AISI52100
S61900-2Z technical drawing S61900-2Z standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI440 AISI440 AISI440
61900-2RS technical drawing 61900-2RS standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI52100 AISI52100 AISI52100
S61900-2RS technical drawing S61900-2RS standard 10.00 22.00 6.00 2695 1273 34 41 J 10 AISI440 AISI440 AISI440
F61900 technical drawing F61900 flanged 10.00 22.00 6.00 2695 1273 34 41 J 11 AISI52100 AISI52100 AISI52100
F61900-2Z technical drawing F61900-2Z flanged 10.00 22.00 6.00 2695 1273 34 41 J 11 AISI52100 AISI52100 AISI52100
SF61900-2Z technical drawing SF61900-2Z flanged 10.00 22.00 6.00 2695 1273 34 41 J 11 AISI440 AISI440 AISI440
F61900-2RS technical drawing F61900-2RS flanged 10.00 22.00 6.00 2695 1273 34 41 J 11 AISI52100 AISI52100 AISI52100
619/11-2Z C3 technical drawing 619/11-2Z C3 standard 11.00 22.00 6.00 - - - - J 14 AISI52100 AISI52100 AISI52100
619/11-2Z technical drawing 619/11-2Z standard 11.00 22.00 6.00 - - - - J 14 AISI52100 AISI52100 AISI52100
SF61701-2Z technical drawing SF61701-2Z flanged 12.00 18.00 4.00 926 530 13 15 W 4 AISI440 AISI440 AISI440
F61701-2RS technical drawing F61701-2RS flanged 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
SF61701-2RS technical drawing SF61701-2RS flanged 12.00 18.00 4.00 926 530 13 15 W 4 AISI440 AISI440 AISI440
61701-2Z C3 technical drawing 61701-2Z C3 standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
61701 C3 technical drawing 61701 C3 standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
61701-2RS C3 technical drawing 61701-2RS C3 standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
F61701-2Z technical drawing F61701-2Z flanged 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
SF61701 technical drawing SF61701 flanged 12.00 18.00 4.00 926 530 13 15 W 4 AISI440 AISI440 AISI440
F61701 technical drawing F61701 flanged 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
S61701-2RS technical drawing S61701-2RS standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI440 AISI440 AISI440
61701-2RS technical drawing 61701-2RS standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
S61701-2Z technical drawing S61701-2Z standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI440 AISI440 AISI440
61701-2Z technical drawing 61701-2Z standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
S61701 technical drawing S61701 standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI440 AISI440 AISI440
61701 technical drawing 61701 standard 12.00 18.00 4.00 926 530 13 15 W 4 AISI52100 AISI52100 AISI52100
SF61801-2RS technical drawing SF61801-2RS flanged 12.00 21.00 5.00 1915 1041 33 39 J 9 AISI440 AISI440 AISI440
S61801-2RS technical drawing S61801-2RS standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI440 AISI440 AISI440
61801-2RS C3 technical drawing 61801-2RS C3 standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI52100 AISI52100 AISI52100
61801-2Z C3 technical drawing 61801-2Z C3 standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI52100 AISI52100 AISI52100
61801 C3 technical drawing 61801 C3 standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI52100 AISI52100 AISI52100
F61801-2RS technical drawing F61801-2RS flanged 12.00 21.00 5.00 1915 1041 33 39 J 9 AISI52100 AISI52100 AISI52100
SF61801-2Z technical drawing SF61801-2Z flanged 12.00 21.00 5.00 1915 1041 33 39 J 9 AISI440 AISI440 AISI440
F61801-2Z technical drawing F61801-2Z flanged 12.00 21.00 5.00 1915 1041 33 39 J 9 AISI52100 AISI52100 AISI52100
61801-2RS technical drawing 61801-2RS standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI52100 AISI52100 AISI52100
F61801 technical drawing F61801 flanged 12.00 21.00 5.00 1915 1041 33 39 J 9 AISI52100 AISI52100 AISI52100
S61801-2Z technical drawing S61801-2Z standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI440 AISI440 AISI440
61801-2Z technical drawing 61801-2Z standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI52100 AISI52100 AISI52100
S61801 technical drawing S61801 standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI440 AISI440 AISI440
61801 technical drawing 61801 standard 12.00 21.00 5.00 1915 1041 33 39 J 7 AISI52100 AISI52100 AISI52100
SF61801 technical drawing SF61801 flanged 12.00 21.00 5.00 1915 1041 33 39 J 9 AISI440 AISI440 AISI440
62801-2RS technical drawing 62801-2RS standard 12.00 21.00 6.00 - - - - J 9 AISI52100 AISI52100 AISI52100
62801-2Z technical drawing 62801-2Z standard 12.00 21.00 6.00 - - - - J 9 AISI52100 AISI52100 AISI52100
62801 technical drawing 62801 standard 12.00 21.00 6.00 - - - - J 9 AISI52100 AISI52100 AISI52100
62801 C3 technical drawing 62801 C3 standard 12.00 21.00 6.00 - - - - J 9 AISI52100 AISI52100 AISI52100
62801-2Z C3 technical drawing 62801-2Z C3 standard 12.00 21.00 6.00 - - - - J 9 AISI52100 AISI52100 AISI52100
62801-2RS C3 technical drawing 62801-2RS C3 standard 12.00 21.00 6.00 - - - - J 9 AISI52100 AISI52100 AISI52100
63801 C3 technical drawing 63801 C3 standard 12.00 21.00 7.00 1915 1041 33 39 J 10 AISI52100 AISI52100 AISI52100
63801-2Z C3 technical drawing 63801-2Z C3 standard 12.00 21.00 7.00 1915 1041 33 39 J 10 AISI52100 AISI52100 AISI52100
63801-2RS C3 technical drawing 63801-2RS C3 standard 12.00 21.00 7.00 1915 1041 33 39 J 10 AISI52100 AISI52100 AISI52100
63801-2RS technical drawing 63801-2RS standard 12.00 21.00 7.00 1915 1041 33 39 J 10 AISI52100 AISI52100 AISI52100
63801-2Z technical drawing 63801-2Z standard 12.00 21.00 7.00 1915 1041 33 39 J 10 AISI52100 AISI52100 AISI52100
63801 technical drawing 63801 standard 12.00 21.00 7.00 1915 1041 33 39 J 10 AISI52100 AISI52100 AISI52100
61901 C3 technical drawing 61901 C3 standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
61901-2Z C3 technical drawing 61901-2Z C3 standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
61901 C3 T9H technical drawing 61901 C3 T9H standard 12.00 24.00 6.00 2886 1466 31 36 T9H 10 AISI52100 AISI52100 AISI52100
61901-2RS C3 technical drawing 61901-2RS C3 standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
61901.T9H technical drawing 61901.T9H standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
61901 technical drawing 61901 standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
S61901 technical drawing S61901 standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI440 AISI440 AISI440
61901-2Z technical drawing 61901-2Z standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
S61901-2Z technical drawing S61901-2Z standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI440 AISI440 AISI440
61901-2RS technical drawing 61901-2RS standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
S61901-2RS technical drawing S61901-2RS standard 12.00 24.00 6.00 2886 1466 31 36 J 10 AISI440 AISI440 AISI440
F61901 technical drawing F61901 flanged 12.00 24.00 6.00 2886 1466 31 36 J 12 AISI52100 AISI52100 AISI52100
SF61901 technical drawing SF61901 flanged 12.00 24.00 6.00 2886 1466 31 36 J 12 AISI440 AISI440 AISI440
F61901-2Z technical drawing F61901-2Z flanged 12.00 24.00 6.00 2886 1466 31 36 J 12 AISI52100 AISI52100 AISI52100
SF61901-2Z technical drawing SF61901-2Z flanged 12.00 24.00 6.00 2886 1466 31 36 J 12 AISI440 AISI440 AISI440
F61901-2RS technical drawing F61901-2RS flanged 12.00 24.00 6.00 2886 1466 31 36 J 12 AISI52100 AISI52100 AISI52100
SF61901-2RS technical drawing SF61901-2RS flanged 12.00 24.00 6.00 2886 1466 31 36 J 12 AISI440 AISI440 AISI440
619/13 C3 TNH technical drawing 619/13 C3 TNH standard 13.00 24.00 6.00 2886 1466 31 36 TNH 10 AISI52100 AISI52100 AISI52100
619/13 C3 technical drawing 619/13 C3 standard 13.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
619/13.TNH technical drawing 619/13.TNH standard 13.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
619/13 technical drawing 619/13 standard 13.00 24.00 6.00 2886 1466 31 36 J 10 AISI52100 AISI52100 AISI52100
61702-2Z C3 technical drawing 61702-2Z C3 standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
61702-2RS C3 technical drawing 61702-2RS C3 standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
61702 C3 technical drawing 61702 C3 standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
SF61702-2RS technical drawing SF61702-2RS flanged 15.00 21.00 4.00 937 582 11 13 W 4 AISI440 AISI440 AISI440
F61702-2RS technical drawing F61702-2RS flanged 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
SF61702-2Z technical drawing SF61702-2Z flanged 15.00 21.00 4.00 937 582 11 13 W 4 AISI440 AISI440 AISI440
F61702-2Z technical drawing F61702-2Z flanged 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
SF61702 technical drawing SF61702 flanged 15.00 21.00 4.00 937 582 11 13 W 4 AISI440 AISI440 AISI440
F61702 technical drawing F61702 flanged 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
S61702-2RS technical drawing S61702-2RS standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI440 AISI440 AISI440
61702-2RS technical drawing 61702-2RS standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
S61702-2Z technical drawing S61702-2Z standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI440 AISI440 AISI440
61702 technical drawing 61702 standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
S61702 technical drawing S61702 standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI440 AISI440 AISI440
61702-2Z technical drawing 61702-2Z standard 15.00 21.00 4.00 937 582 11 13 W 4 AISI52100 AISI52100 AISI52100
F61802-2RS technical drawing F61802-2RS flanged 15.00 24.00 5.00 2073 1253 28 33 J 10 AISI52100 AISI52100 AISI52100
SF61802-2RS technical drawing SF61802-2RS flanged 15.00 24.00 5.00 2073 1253 28 33 J 10 AISI440 AISI440 AISI440
61802-2RS C3 technical drawing 61802-2RS C3 standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI52100 AISI52100 AISI52100
61802-2Z C3 technical drawing 61802-2Z C3 standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI52100 AISI52100 AISI52100
61802 C3 technical drawing 61802 C3 standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI52100 AISI52100 AISI52100
SF61802-2Z technical drawing SF61802-2Z flanged 15.00 24.00 5.00 2073 1253 28 33 J 10 AISI440 AISI440 AISI440
F61802-2Z technical drawing F61802-2Z flanged 15.00 24.00 5.00 2073 1253 28 33 J 10 AISI52100 AISI52100 AISI52100
61802-2RS technical drawing 61802-2RS standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI52100 AISI52100 AISI52100
S61802-2Z technical drawing S61802-2Z standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI440 AISI440 AISI440
61802-2Z technical drawing 61802-2Z standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI52100 AISI52100 AISI52100
S61802 technical drawing S61802 standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI440 AISI440 AISI440
61802 technical drawing 61802 standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI52100 AISI52100 AISI52100
S61802-2RS technical drawing S61802-2RS standard 15.00 24.00 5.00 2073 1253 28 33 J 9 AISI440 AISI440 AISI440
F61802 technical drawing F61802 flanged 15.00 24.00 5.00 2073 1253 28 33 J 10 AISI52100 AISI52100 AISI52100
SF61802 technical drawing SF61802 flanged 15.00 24.00 5.00 2073 1253 28 33 J 10 AISI440 AISI440 AISI440
63802 C3 technical drawing 63802 C3 standard 15.00 24.00 7.00 2073 1253 28 33 J 11 AISI52100 AISI52100 AISI52100
63802-2Z C3 technical drawing 63802-2Z C3 standard 15.00 24.00 7.00 2073 1253 28 33 J 11 AISI52100 AISI52100 AISI52100
63802-2RS C3 technical drawing 63802-2RS C3 standard 15.00 24.00 7.00 2073 1253 28 33 J 11 AISI52100 AISI52100 AISI52100
63802-2RS technical drawing 63802-2RS standard 15.00 24.00 7.00 2073 1253 28 33 J 11 AISI52100 AISI52100 AISI52100
63802-2Z technical drawing 63802-2Z standard 15.00 24.00 7.00 2073 1253 28 33 J 11 AISI52100 AISI52100 AISI52100
63802 technical drawing 63802 standard 15.00 24.00 7.00 2073 1253 28 33 J 11 AISI52100 AISI52100 AISI52100
61902 C3 technical drawing 61902 C3 standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI52100 AISI52100 AISI52100
61902-2Z C3 technical drawing 61902-2Z C3 standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI52100 AISI52100 AISI52100
61902-2RS C3 technical drawing 61902-2RS C3 standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI52100 AISI52100 AISI52100
SF61902-2RS technical drawing SF61902-2RS flanged 15.00 28.00 7.00 4321 2259 26 30 J 18 AISI440 AISI440 AISI440
61902 technical drawing 61902 standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI52100 AISI52100 AISI52100
S61902 technical drawing S61902 standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI440 AISI440 AISI440
61902-2Z technical drawing 61902-2Z standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI52100 AISI52100 AISI52100
S61902-2Z technical drawing S61902-2Z standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI440 AISI440 AISI440
61902-2RS technical drawing 61902-2RS standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI52100 AISI52100 AISI52100
S61902-2RS technical drawing S61902-2RS standard 15.00 28.00 7.00 4321 2259 26 30 J 15 AISI440 AISI440 AISI440
F61902 technical drawing F61902 flanged 15.00 28.00 7.00 4321 2259 26 30 J 18 AISI52100 AISI52100 AISI52100
SF61902 technical drawing SF61902 flanged 15.00 28.00 7.00 4321 2259 26 30 J 18 AISI440 AISI440 AISI440
F61902-2Z technical drawing F61902-2Z flanged 15.00 28.00 7.00 4321 2259 26 30 J 18 AISI52100 AISI52100 AISI52100
SF61902-2Z technical drawing SF61902-2Z flanged 15.00 28.00 7.00 4321 2259 26 30 J 18 AISI440 AISI440 AISI440
F61902-2RS technical drawing F61902-2RS flanged 15.00 28.00 7.00 4321 2259 26 30 J 18 AISI52100 AISI52100 AISI52100
SF61703-2Z technical drawing SF61703-2Z flanged 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI440 AISI440 AISI440
F61703-2RS technical drawing F61703-2RS flanged 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
SF61703-2RS technical drawing SF61703-2RS flanged 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI440 AISI440 AISI440
61703-2RS C3 technical drawing 61703-2RS C3 standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
61703-2Z C3 technical drawing 61703-2Z C3 standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
61703 C3 technical drawing 61703 C3 standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
F61703-2Z technical drawing F61703-2Z flanged 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
SF61703 technical drawing SF61703 flanged 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI440 AISI440 AISI440
F61703 technical drawing F61703 flanged 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
S61703-2RS technical drawing S61703-2RS standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI440 AISI440 AISI440
61703-2RS technical drawing 61703-2RS standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
S61703-2Z technical drawing S61703-2Z standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI440 AISI440 AISI440
61703 technical drawing 61703 standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
61703-2Z technical drawing 61703-2Z standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI52100 AISI52100 AISI52100
S61703 technical drawing S61703 standard 17.00 23.00 4.00 1000 658 9.5 11 W 5 AISI440 AISI440 AISI440
F61803-2RS technical drawing F61803-2RS flanged 17.00 26.00 5.00 2233 1456 26 30 J 10 AISI52100 AISI52100 AISI52100
SF61803-2RS technical drawing SF61803-2RS flanged 17.00 26.00 5.00 2233 1456 26 30 J 10 AISI440 AISI440 AISI440
61803 C3 technical drawing 61803 C3 standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI52100 AISI52100 AISI52100
61803-2Z C3 technical drawing 61803-2Z C3 standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI52100 AISI52100 AISI52100
61803-2RS C3 technical drawing 61803-2RS C3 standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI52100 AISI52100 AISI52100
SF61803-2Z technical drawing SF61803-2Z flanged 17.00 26.00 5.00 2233 1456 26 30 J 10 AISI440 AISI440 AISI440
F61803-2Z technical drawing F61803-2Z flanged 17.00 26.00 5.00 2233 1456 26 30 J 10 AISI52100 AISI52100 AISI52100
61803-2RS technical drawing 61803-2RS standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI52100 AISI52100 AISI52100
S61803-2Z technical drawing S61803-2Z standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI440 AISI440 AISI440
61803-2Z technical drawing 61803-2Z standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI52100 AISI52100 AISI52100
S61803 technical drawing S61803 standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI440 AISI440 AISI440
61803 technical drawing 61803 standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI52100 AISI52100 AISI52100
S61803-2RS technical drawing S61803-2RS standard 17.00 26.00 5.00 2233 1456 26 30 J 9 AISI440 AISI440 AISI440
SF61803 technical drawing SF61803 flanged 17.00 26.00 5.00 2233 1456 26 30 J 10 AISI440 AISI440 AISI440
F61803 technical drawing F61803 flanged 17.00 26.00 5.00 2233 1456 26 30 J 10 AISI52100 AISI52100 AISI52100
63803-2RS technical drawing 63803-2RS standard 17.00 26.00 7.00 2233 1456 26 30 J 11 AISI52100 AISI52100 AISI52100
63803-2Z C3 technical drawing 63803-2Z C3 standard 17.00 26.00 7.00 2233 1456 26 30 J 11 AISI52100 AISI52100 AISI52100
63803-2RS C3 technical drawing 63803-2RS C3 standard 17.00 26.00 7.00 2233 1456 26 30 J 11 AISI52100 AISI52100 AISI52100
63803-2Z technical drawing 63803-2Z standard 17.00 26.00 7.00 2233 1456 26 30 J 11 AISI52100 AISI52100 AISI52100
61903-2Z C3 technical drawing 61903-2Z C3 standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI52100 AISI52100 AISI52100
61903-2RS C3 technical drawing 61903-2RS C3 standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI52100 AISI52100 AISI52100
SF61903 technical drawing SF61903 flanged 17.00 30.00 7.00 4588 2565 23 38 J 12 AISI440 AISI440 AISI440
61903 C3 technical drawing 61903 C3 standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI52100 AISI52100 AISI52100
61903-2Z technical drawing 61903-2Z standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI52100 AISI52100 AISI52100
S61903-2Z technical drawing S61903-2Z standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI440 AISI440 AISI440
61903-2RS technical drawing 61903-2RS standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI52100 AISI52100 AISI52100
S61903-2RS technical drawing S61903-2RS standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI440 AISI440 AISI440
F61903 technical drawing F61903 flanged 17.00 30.00 7.00 4588 2565 23 38 J 12 AISI52100 AISI52100 AISI52100
S61903 technical drawing S61903 standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI440 AISI440 AISI440
F61903-2Z technical drawing F61903-2Z flanged 17.00 30.00 7.00 4588 2565 23 38 J 12 AISI52100 AISI52100 AISI52100
SF61903-2Z technical drawing SF61903-2Z flanged 17.00 30.00 7.00 4588 2565 23 38 J 12 AISI440 AISI440 AISI440
F61903-2RS technical drawing F61903-2RS flanged 17.00 30.00 7.00 4588 2565 23 38 J 12 AISI52100 AISI52100 AISI52100
SF61903-2RS technical drawing SF61903-2RS flanged 17.00 30.00 7.00 4588 2565 23 38 J 12 AISI440 AISI440 AISI440
61903 technical drawing 61903 standard 17.00 30.00 7.00 4588 2565 23 38 J 10 AISI52100 AISI52100 AISI52100
Y17 C3 technical drawing Y17 C3 standard 17.00 32.00 8.00 - - - - J 14 AISI52100 AISI52100 AISI52100
Y12-2Z C3 technical drawing Y12-2Z C3 standard 17.00 32.00 8.00 - - - - J 14 AISI52100 AISI52100 AISI52100
Y12-2Z technical drawing Y12-2Z standard 17.00 32.00 8.00 - - - - J 14 AISI52100 AISI52100 AISI52100
61704 C3 technical drawing 61704 C3 standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
61704-2Z C3 technical drawing 61704-2Z C3 standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
61704-2Z C3 technical drawing 61704-2Z C3 standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
SF61704-2RS technical drawing SF61704-2RS flanged 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI440 AISI440 AISI440
F61704-2Z technical drawing F61704-2Z flanged 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
SF61704-2RS technical drawing SF61704-2RS flanged 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI440 AISI440 AISI440
F61704-2Z technical drawing F61704-2Z flanged 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
SF61704 technical drawing SF61704 flanged 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI440 AISI440 AISI440
F61704 technical drawing F61704 flanged 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
S61704-2RS technical drawing S61704-2RS standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI440 AISI440 AISI440
61704-2Z technical drawing 61704-2Z standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
S61704-2RS technical drawing S61704-2RS standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI440 AISI440 AISI440
61704 technical drawing 61704 standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
61704-2Z technical drawing 61704-2Z standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI52100 AISI52100 AISI52100
S61704 technical drawing S61704 standard 20.00 27.00 4.00 1402 729 8.5 10 W 6 AISI440 AISI440 AISI440
F61804-2RS technical drawing F61804-2RS flanged 20.00 32.00 7.00 4015 2462 21 25 J 20 AISI52100 AISI52100 AISI52100
SF61804-2RS technical drawing SF61804-2RS flanged 20.00 32.00 7.00 4015 2462 21 25 J 20 AISI440 AISI440 AISI440
61804 C3 technical drawing 61804 C3 standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI52100 AISI52100 AISI52100
61804-2Z C3 technical drawing 61804-2Z C3 standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI52100 AISI52100 AISI52100
61804-2RS C3 technical drawing 61804-2RS C3 standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI52100 AISI52100 AISI52100
SF61804-2Z technical drawing SF61804-2Z flanged 20.00 32.00 7.00 4015 2462 21 25 J 20 AISI440 AISI440 AISI440
F61804-2Z technical drawing F61804-2Z flanged 20.00 32.00 7.00 4015 2462 21 25 J 20 AISI52100 AISI52100 AISI52100
S61804-2RS technical drawing S61804-2RS standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI440 AISI440 AISI440
61804-2RS technical drawing 61804-2RS standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI52100 AISI52100 AISI52100
S61804-2Z technical drawing S61804-2Z standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI440 AISI440 AISI440
61804-2Z technical drawing 61804-2Z standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI52100 AISI52100 AISI52100
S61804 technical drawing S61804 standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI440 AISI440 AISI440
61804 technical drawing 61804 standard 20.00 32.00 7.00 4015 2462 21 25 J 18 AISI52100 AISI52100 AISI52100
F61804 technical drawing F61804 flanged 20.00 32.00 7.00 4015 2462 21 25 J 20 AISI52100 AISI52100 AISI52100
SF61804 technical drawing SF61804 flanged 20.00 32.00 7.00 4015 2462 21 25 J 20 AISI440 AISI440 AISI440
61904 C3 technical drawing 61904 C3 standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI52100 AISI52100 AISI52100
61904-2Z C3 technical drawing 61904-2Z C3 standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI52100 AISI52100 AISI52100
61904-2RS C3 technical drawing 61904-2RS C3 standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI52100 AISI52100 AISI52100
SF61904-2RS technical drawing SF61904-2RS flanged 20.00 37.00 9.00 6381 3682 19 23 J 43 AISI440 AISI440 AISI440
F61904-2RS technical drawing F61904-2RS flanged 20.00 37.00 9.00 6381 3682 19 23 J 43 AISI52100 AISI52100 AISI52100
SF61904-2Z technical drawing SF61904-2Z flanged 20.00 37.00 9.00 6381 3682 19 23 J 43 AISI440 AISI440 AISI440
61904 technical drawing 61904 standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI52100 AISI52100 AISI52100
S61904 technical drawing S61904 standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI440 AISI440 AISI440
61904-2Z technical drawing 61904-2Z standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI52100 AISI52100 AISI52100
S61904-2Z technical drawing S61904-2Z standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI440 AISI440 AISI440
61904-2RS technical drawing 61904-2RS standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI52100 AISI52100 AISI52100
S61904-2RS technical drawing S61904-2RS standard 20.00 37.00 9.00 6381 3682 19 23 J 40 AISI440 AISI440 AISI440
F61904 technical drawing F61904 flanged 20.00 37.00 9.00 6381 3682 19 23 J 43 AISI52100 AISI52100 AISI52100
SF61904 technical drawing SF61904 flanged 20.00 37.00 9.00 6381 3682 19 23 J 43 AISI440 AISI440 AISI440
F61904-2Z technical drawing F61904-2Z flanged 20.00 37.00 9.00 6381 3682 19 23 J 43 AISI52100 AISI52100 AISI52100
SF61705-2Z technical drawing SF61705-2Z flanged 25.00 32.00 4.00 1091 838 7 8 W 8 AISI440 AISI440 AISI440
F61705-2RS technical drawing F61705-2RS flanged 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
SF61705-2RS technical drawing SF61705-2RS flanged 25.00 32.00 4.00 1091 838 7 8 W 8 AISI440 AISI440 AISI440
61705-2RS C3 technical drawing 61705-2RS C3 standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
61705-2Z C3 technical drawing 61705-2Z C3 standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
61705 C3 technical drawing 61705 C3 standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
F61705-2Z technical drawing F61705-2Z flanged 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
SF61705 technical drawing SF61705 flanged 25.00 32.00 4.00 1091 838 7 8 W 8 AISI440 AISI440 AISI440
F61705 technical drawing F61705 flanged 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
S61705-2RS technical drawing S61705-2RS standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI440 AISI440 AISI440
61705-2RS technical drawing 61705-2RS standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
S61705-2Z technical drawing S61705-2Z standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI440 AISI440 AISI440
61705 technical drawing 61705 standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
61705-2Z technical drawing 61705-2Z standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI52100 AISI52100 AISI52100
S61705 technical drawing S61705 standard 25.00 32.00 4.00 1091 838 7 8 W 8 AISI440 AISI440 AISI440
F61805-2RS technical drawing F61805-2RS flanged 25.00 37.00 7.00 4303 2932 18 21 J 27 AISI52100 AISI52100 AISI52100
SF61805-2RS technical drawing SF61805-2RS flanged 25.00 37.00 7.00 4303 2932 18 21 J 27 AISI440 AISI440 AISI440
61805 C3 technical drawing 61805 C3 standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI52100 AISI52100 AISI52100
61805-2Z C3 technical drawing 61805-2Z C3 standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI52100 AISI52100 AISI52100
61805-2RS C3 technical drawing 61805-2RS C3 standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI52100 AISI52100 AISI52100
SF61805-2Z technical drawing SF61805-2Z flanged 25.00 37.00 7.00 4303 2932 18 21 J 27 AISI440 AISI440 AISI440
F61805-2Z technical drawing F61805-2Z flanged 25.00 37.00 7.00 4303 2932 18 21 J 27 AISI52100 AISI52100 AISI52100
S61805-2RS technical drawing S61805-2RS standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI440 AISI440 AISI440
61805-2RS technical drawing 61805-2RS standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI52100 AISI52100 AISI52100
S61805-2Z technical drawing S61805-2Z standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI440 AISI440 AISI440
61805-2Z technical drawing 61805-2Z standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI52100 AISI52100 AISI52100
S61805 technical drawing S61805 standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI440 AISI440 AISI440
61805 technical drawing 61805 standard 25.00 37.00 7.00 4303 2932 18 21 J 24 AISI52100 AISI52100 AISI52100
F61805 technical drawing F61805 flanged 25.00 37.00 7.00 4303 2932 18 21 J 27 AISI52100 AISI52100 AISI52100
SF61805 technical drawing SF61805 flanged 25.00 37.00 7.00 4303 2932 18 21 J 27 AISI440 AISI440 AISI440
61905 C3 technical drawing 61905 C3 standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
61905-2Z C3 technical drawing 61905-2Z C3 standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
61905-2RS C3 technical drawing 61905-2RS C3 standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
SF61905-2RS technical drawing SF61905-2RS flanged 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI440 AISI440 AISI440
F61905-2RS technical drawing F61905-2RS flanged 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
SF61905-2Z technical drawing SF61905-2Z flanged 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI440 AISI440 AISI440
61905 technical drawing 61905 standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
S61905 technical drawing S61905 standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI440 AISI440 AISI440
61905-2Z technical drawing 61905-2Z standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
S61905-2Z technical drawing S61905-2Z standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI440 AISI440 AISI440
61905-2RS technical drawing 61905-2RS standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
S61905-2RS technical drawing S61905-2RS standard 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI440 AISI440 AISI440
F61905 technical drawing F61905 flanged 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
SF61905 technical drawing SF61905 flanged 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI440 AISI440 AISI440
F61905-2Z technical drawing F61905-2Z flanged 25.00 42.00 9.00 7001 4540 16 19 J 47 AISI52100 AISI52100 AISI52100
SF61706-2Z technical drawing SF61706-2Z flanged 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI440 AISI440 AISI440
F61706-2RS technical drawing F61706-2RS flanged 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
SF61706-2RS technical drawing SF61706-2RS flanged 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI440 AISI440 AISI440
61706-2RS C3 technical drawing 61706-2RS C3 standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
61706-2Z C3 technical drawing 61706-2Z C3 standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
61706 C3 technical drawing 61706 C3 standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
F61706-2Z technical drawing F61706-2Z flanged 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
SF61706 technical drawing SF61706 flanged 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI440 AISI440 AISI440
F61706 technical drawing F61706 flanged 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
S61706-2RS technical drawing S61706-2RS standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI440 AISI440 AISI440
61706-2RS technical drawing 61706-2RS standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
S61706-2Z technical drawing S61706-2Z standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI440 AISI440 AISI440
61706 technical drawing 61706 standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
61706-2Z technical drawing 61706-2Z standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI52100 AISI52100 AISI52100
S61706 technical drawing S61706 standard 30.00 37.00 4.00 1143 947 5.5 7 W 9 AISI440 AISI440 AISI440
F61806-2RS technical drawing F61806-2RS flanged 30.00 42.00 7.00 4538 3402 15 18 J 29 AISI52100 AISI52100 AISI52100
SF61806-2RS technical drawing SF61806-2RS flanged 30.00 42.00 7.00 4538 3402 15 18 J 29 AISI440 AISI440 AISI440
61806 C3 technical drawing 61806 C3 standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI52100 AISI52100 AISI52100
61806-2Z C3 technical drawing 61806-2Z C3 standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI52100 AISI52100 AISI52100
61806-2RS C3 technical drawing 61806-2RS C3 standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI52100 AISI52100 AISI52100
SF61806-2Z technical drawing SF61806-2Z flanged 30.00 42.00 7.00 4538 3402 15 18 J 29 AISI440 AISI440 AISI440
F61806-2Z technical drawing F61806-2Z flanged 30.00 42.00 7.00 4538 3402 15 18 J 29 AISI52100 AISI52100 AISI52100
S61806-2RS technical drawing S61806-2RS standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI440 AISI440 AISI440
61806-2RS technical drawing 61806-2RS standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI52100 AISI52100 AISI52100
S61806-2Z technical drawing S61806-2Z standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI440 AISI440 AISI440
61806-2Z technical drawing 61806-2Z standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI52100 AISI52100 AISI52100
S61806 technical drawing S61806 standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI440 AISI440 AISI440
61806 technical drawing 61806 standard 30.00 42.00 7.00 4538 3402 15 18 J 27 AISI52100 AISI52100 AISI52100
F61806 technical drawing F61806 flanged 30.00 42.00 7.00 4538 3402 15 18 J 29 AISI52100 AISI52100 AISI52100
SF61806 technical drawing SF61806 flanged 30.00 42.00 7.00 4538 3402 15 18 J 29 AISI440 AISI440 AISI440
61906 C3 technical drawing 61906 C3 standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI52100 AISI52100 AISI52100
61906-2Z C3 technical drawing 61906-2Z C3 standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI52100 AISI52100 AISI52100
61906-2RS C3 technical drawing 61906-2RS C3 standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI52100 AISI52100 AISI52100
SF61906-2RS technical drawing SF61906-2RS flanged 30.00 47.00 9.00 7242 5003 14 17 J 57 AISI440 AISI440 AISI440
F61906-2RS technical drawing F61906-2RS flanged 30.00 47.00 9.00 7242 5003 14 17 J 57 AISI52100 AISI52100 AISI52100
SF61906-2Z technical drawing SF61906-2Z flanged 30.00 47.00 9.00 7242 5003 14 17 J 57 AISI440 AISI440 AISI440
61906 technical drawing 61906 standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI52100 AISI52100 AISI52100
S61906 technical drawing S61906 standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI440 AISI440 AISI440
61906-2Z technical drawing 61906-2Z standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI52100 AISI52100 AISI52100
S61906-2Z technical drawing S61906-2Z standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI440 AISI440 AISI440
61906-2RS technical drawing 61906-2RS standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI52100 AISI52100 AISI52100
S61906-2RS technical drawing S61906-2RS standard 30.00 47.00 9.00 7242 5003 14 17 J 53 AISI440 AISI440 AISI440
F61906 technical drawing F61906 flanged 30.00 47.00 9.00 7242 5003 14 17 J 57 AISI52100 AISI52100 AISI52100
SF61906 technical drawing SF61906 flanged 30.00 47.00 9.00 7242 5003 14 17 J 57 AISI440 AISI440 AISI440
F61906-2Z technical drawing F61906-2Z flanged 30.00 47.00 9.00 7242 5003 14 17 J 57 AISI52100 AISI52100 AISI52100
61707-2RS C3 technical drawing 61707-2RS C3 standard 35.00 44.00 5.00 1866 1635 4.9 6 W 15 AISI52100 AISI52100 AISI52100
61707 C3 technical drawing 61707 C3 standard 35.00 44.00 5.00 1866 1635 4.9 6 W 15 AISI52100 AISI52100 AISI52100
61707-2Z C3 technical drawing 61707-2Z C3 standard 35.00 44.00 5.00 1866 1635 4.9 6 W 15 AISI52100 AISI52100 AISI52100
61707-2RS technical drawing 61707-2RS standard 35.00 44.00 5.00 1866 1635 4.9 6 W 15 AISI52100 AISI52100 AISI52100
61707 technical drawing 61707 standard 35.00 44.00 5.00 1866 1635 4.9 6 W 15 AISI52100 AISI52100 AISI52100
61707-2Z technical drawing 61707-2Z standard 35.00 44.00 5.00 1866 1635 4.9 6 W 15 AISI52100 AISI52100 AISI52100
61807-2RS C3 technical drawing 61807-2RS C3 standard 35.00 47.00 7.00 4729 3821 13 16 J 32 AISI52100 AISI52100 AISI52100
61807-2Z C3 technical drawing 61807-2Z C3 standard 35.00 47.00 7.00 4729 3821 13 16 J 32 AISI52100 AISI52100 AISI52100
61807 C3 technical drawing 61807 C3 standard 35.00 47.00 7.00 4729 3821 13 16 J 32 AISI52100 AISI52100 AISI52100
61807 technical drawing 61807 standard 35.00 47.00 7.00 4729 3821 13 16 J 32 AISI52100 AISI52100 AISI52100
S61807 technical drawing S61807 standard 35.00 47.00 7.00 4729 3821 13 16 J 32 AISI440 AISI440 AISI440
S61807-2RS technical drawing S61807-2RS standard 35.00 47.00 7.00 4729 3821 13 16 J 32 AISI440 AISI440 AISI440
61807-2RS technical drawing 61807-2RS standard 35.00 47.00 7.00 4729 3821 13 16 J 32 AISI52100 AISI52100 AISI52100
61807-2Z technical drawing 61807-2Z standard 35.00 47.00 7.00 4729 3821 13 16 J 32 AISI52100 AISI52100 AISI52100
61907-2RS C3 technical drawing 61907-2RS C3 standard 35.00 55.00 10.00 10900 7818 12 14 W 88 AISI52100 AISI52100 AISI52100
61907-2Z C3 technical drawing 61907-2Z C3 standard 35.00 55.00 10.00 10900 7818 12 14 W 88 AISI52100 AISI52100 AISI52100
61907 C3 technical drawing 61907 C3 standard 35.00 55.00 10.00 10900 7818 12 14 W 88 AISI52100 AISI52100 AISI52100
61907-2Z technical drawing 61907-2Z standard 35.00 55.00 10.00 10900 7818 12 14 W 88 AISI52100 AISI52100 AISI52100
61907 technical drawing 61907 standard 35.00 55.00 10.00 10900 7818 12 14 W 88 AISI52100 AISI52100 AISI52100
S61907 technical drawing S61907 standard 35.00 55.00 10.00 10900 7818 12 14 W 88 AISI440 AISI440 AISI440
S61907-2RS technical drawing S61907-2RS standard 35.00 55.00 10.00 10900 7818 12 14 W 88 AISI440 AISI440 AISI440
61907-2RS technical drawing 61907-2RS standard 35.00 55.00 10.00 10900 7818 12 14 W 88 AISI52100 AISI52100 AISI52100
61708 technical drawing 61708 standard 40.00 50.00 6.00 2516 2233 4.3 5 J 23 AISI52100 AISI52100 AISI52100
S61708 technical drawing S61708 standard 40.00 50.00 6.00 2516 2233 4.3 5 J 23 AISI440 AISI440 AISI440
61708-2Z technical drawing 61708-2Z standard 40.00 50.00 6.00 2516 2233 4.3 5 J 23 AISI52100 AISI52100 AISI52100
61708-2RS technical drawing 61708-2RS standard 40.00 50.00 6.00 2516 2233 4.3 5 J 23 AISI52100 AISI52100 AISI52100
S61708-2RS technical drawing S61708-2RS standard 40.00 50.00 6.00 2516 2233 4.3 5 J 23 AISI440 AISI440 AISI440
61708-2RS C3 technical drawing 61708-2RS C3 standard 40.00 50.00 6.00 2516 2233 4.3 5 J 23 AISI52100 AISI52100 AISI52100
61708 C3 technical drawing 61708 C3 standard 40.00 50.00 6.00 2516 2233 4.3 5 J 23 AISI52100 AISI52100 AISI52100
61708-2Z C3 technical drawing 61708-2Z C3 standard 40.00 50.00 6.00 2516 2233 4.3 5 J 23 AISI52100 AISI52100 AISI52100
61808-2RS C3 technical drawing 61808-2RS C3 standard 40.00 52.00 7.00 4923 4178 12 14 J 35 AISI52100 AISI52100 AISI52100
61808-2Z C3 technical drawing 61808-2Z C3 standard 40.00 52.00 7.00 4923 4178 12 14 J 35 AISI52100 AISI52100 AISI52100
61808 C3 technical drawing 61808 C3 standard 40.00 52.00 7.00 4923 4178 12 14 J 35 AISI52100 AISI52100 AISI52100
S61808-2RS technical drawing S61808-2RS standard 40.00 52.00 7.00 4923 4178 12 14 J 35 AISI440 AISI440 AISI440
61808 technical drawing 61808 standard 40.00 52.00 7.00 4923 4178 12 14 J 35 AISI52100 AISI52100 AISI52100
61808-2RS technical drawing 61808-2RS standard 40.00 52.00 7.00 4923 4178 12 14 J 35 AISI52100 AISI52100 AISI52100
61808-2Z technical drawing 61808-2Z standard 40.00 52.00 7.00 4923 4178 12 14 J 35 AISI52100 AISI52100 AISI52100
S61808 technical drawing S61808 standard 40.00 52.00 7.00 4923 4178 12 14 J 35 AISI440 AISI440 AISI440
S61908 technical drawing S61908 standard 40.00 62.00 12.00 13678 9968 11 13 J 132 AISI440 AISI440 AISI440
61908-2RS C3 technical drawing 61908-2RS C3 standard 40.00 62.00 12.00 13678 9968 11 13 J 132 AISI52100 AISI52100 AISI52100
61908-2Z C3 technical drawing 61908-2Z C3 standard 40.00 62.00 12.00 13678 9968 11 13 J 132 AISI52100 AISI52100 AISI52100
61908 C3 technical drawing 61908 C3 standard 40.00 62.00 12.00 13678 9968 11 13 J 132 AISI52100 AISI52100 AISI52100
61908 technical drawing 61908 standard 40.00 62.00 12.00 13678 9968 11 13 J 132 AISI52100 AISI52100 AISI52100
S61908-2RS technical drawing S61908-2RS standard 40.00 62.00 12.00 13678 9968 11 13 J 132 AISI440 AISI440 AISI440
61908-2RS technical drawing 61908-2RS standard 40.00 62.00 12.00 13678 9968 11 13 J 132 AISI52100 AISI52100 AISI52100
61908-2Z technical drawing 61908-2Z standard 40.00 62.00 12.00 13678 9968 11 13 J 132 AISI52100 AISI52100 AISI52100
61709-2Z C3 technical drawing 61709-2Z C3 standard 45.00 55.00 6.00 2580 2397 3.9 4.6 W 25 AISI52100 AISI52100 AISI52100
61709-2RS C3 technical drawing 61709-2RS C3 standard 45.00 55.00 6.00 2580 2397 3.9 4.6 W 25 AISI52100 AISI52100 AISI52100
S61709-2RS technical drawing S61709-2RS standard 45.00 55.00 6.00 2580 2397 3.9 4.6 W 25 AISI440 AISI440 AISI440
61709-2RS technical drawing 61709-2RS standard 45.00 55.00 6.00 2580 2397 3.9 4.6 W 25 AISI52100 AISI52100 AISI52100
61709-2Z technical drawing 61709-2Z standard 45.00 55.00 6.00 2580 2397 3.9 4.6 W 25 AISI52100 AISI52100 AISI52100
S61709 technical drawing S61709 standard 45.00 55.00 6.00 2580 2397 3.9 4.6 W 25 AISI440 AISI440 AISI440
61709 technical drawing 61709 standard 45.00 55.00 6.00 2580 2397 3.9 4.6 W 25 AISI52100 AISI52100 AISI52100
61709 C3 technical drawing 61709 C3 standard 45.00 55.00 6.00 2580 2397 3.9 4.6 W 25 AISI52100 AISI52100 AISI52100
61809-2RS C3 technical drawing 61809-2RS C3 standard 45.00 58.00 7.00 6187 5381 11 13 J 42 AISI52100 AISI52100 AISI52100
61809-2Z C3 technical drawing 61809-2Z C3 standard 45.00 58.00 7.00 6187 5381 11 13 J 42 AISI52100 AISI52100 AISI52100
61809 C3 technical drawing 61809 C3 standard 45.00 58.00 7.00 6187 5381 11 13 J 42 AISI52100 AISI52100 AISI52100
61809 technical drawing 61809 standard 45.00 58.00 7.00 6187 5381 11 13 J 42 AISI52100 AISI52100 AISI52100
S61809-2RS technical drawing S61809-2RS standard 45.00 58.00 7.00 6187 5381 11 13 J 42 AISI440 AISI440 AISI440
61809-2RS technical drawing 61809-2RS standard 45.00 58.00 7.00 6187 5381 11 13 J 42 AISI52100 AISI52100 AISI52100
61809-2Z technical drawing 61809-2Z standard 45.00 58.00 7.00 6187 5381 11 13 J 42 AISI52100 AISI52100 AISI52100
S61809 technical drawing S61809 standard 45.00 58.00 7.00 6187 5381 11 13 J 42 AISI440 AISI440 AISI440
S61909 technical drawing S61909 standard 45.00 68.00 12.00 14100 10830 9.7 11 J 148 AISI440 AISI440 AISI440
61909-2RS C3 technical drawing 61909-2RS C3 standard 45.00 68.00 12.00 14100 10830 9.7 11 J 148 AISI52100 AISI52100 AISI52100
61909-2Z C3 technical drawing 61909-2Z C3 standard 45.00 68.00 12.00 14100 10830 9.7 11 J 148 AISI52100 AISI52100 AISI52100
61909 C3 technical drawing 61909 C3 standard 45.00 68.00 12.00 14100 10830 9.7 11 J 148 AISI52100 AISI52100 AISI52100
61909 technical drawing 61909 standard 45.00 68.00 12.00 14100 10830 9.7 11 J 148 AISI52100 AISI52100 AISI52100
S61909-2RS technical drawing S61909-2RS standard 45.00 68.00 12.00 14100 10830 9.7 11 J 148 AISI440 AISI440 AISI440
61909-2RS technical drawing 61909-2RS standard 45.00 68.00 12.00 14100 10830 9.7 11 J 148 AISI52100 AISI52100 AISI52100
61909-2Z technical drawing 61909-2Z standard 45.00 68.00 12.00 14100 10830 9.7 11 J 148 AISI52100 AISI52100 AISI52100
61810-2Z C3 technical drawing 61810-2Z C3 standard 50.00 65.00 7.00 6610 6090 9.6 11 J 65 AISI52100 AISI52100 AISI52100
61810-2RS C3 technical drawing 61810-2RS C3 standard 50.00 65.00 7.00 6610 6090 9.6 11 J 65 AISI52100 AISI52100 AISI52100
S61810-2RS technical drawing S61810-2RS standard 50.00 65.00 7.00 6610 6090 9.6 11 J 65 AISI440 AISI440 AISI440
61810-2RS technical drawing 61810-2RS standard 50.00 65.00 7.00 6610 6090 9.6 11 J 65 AISI52100 AISI52100 AISI52100
61810-2Z technical drawing 61810-2Z standard 50.00 65.00 7.00 6610 6090 9.6 11 J 65 AISI52100 AISI52100 AISI52100
S61810 technical drawing S61810 standard 50.00 65.00 7.00 6610 6090 9.6 11 J 65 AISI440 AISI440 AISI440
61810 technical drawing 61810 standard 50.00 65.00 7.00 6610 6090 9.6 11 J 65 AISI52100 AISI52100 AISI52100
61810 C3 technical drawing 61810 C3 standard 50.00 65.00 7.00 6610 6090 9.6 11 J 65 AISI52100 AISI52100 AISI52100
61910-2RS C3 technical drawing 61910-2RS C3 standard 50.00 72.00 12.00 14540 11710 9 11 J 145 AISI52100 AISI52100 AISI52100
61910-2Z C3 technical drawing 61910-2Z C3 standard 50.00 72.00 12.00 14540 11710 9 11 J 145 AISI52100 AISI52100 AISI52100
61910 C3 technical drawing 61910 C3 standard 50.00 72.00 12.00 14540 11710 9 11 J 145 AISI52100 AISI52100 AISI52100
S61910-2RS technical drawing S61910-2RS standard 50.00 72.00 12.00 14540 11710 9 11 J 145 AISI440 AISI440 AISI440
61910-2RS technical drawing 61910-2RS standard 50.00 72.00 12.00 14540 11710 9 11 J 145 AISI52100 AISI52100 AISI52100
61910-2Z technical drawing 61910-2Z standard 50.00 72.00 12.00 14540 11710 9 11 J 145 AISI52100 AISI52100 AISI52100
S61910 technical drawing S61910 standard 50.00 72.00 12.00 14540 11710 9 11 J 145 AISI440 AISI440 AISI440
61910 technical drawing 61910 standard 50.00 72.00 12.00 14540 11710 9 11 J 145 AISI52100 AISI52100 AISI52100
61811-2Z C3 technical drawing 61811-2Z C3 standard 55.00 72.00 9.00 8800 8100 8.7 10 J 84 AISI52100 AISI52100 AISI52100
61811-2RS C3 technical drawing 61811-2RS C3 standard 55.00 72.00 9.00 8800 8100 8.7 10 J 84 AISI52100 AISI52100 AISI52100
S61811-2RS technical drawing S61811-2RS standard 55.00 72.00 9.00 8800 8100 8.7 10 J 84 AISI440 AISI440 AISI440
61811-2RS technical drawing 61811-2RS standard 55.00 72.00 9.00 8800 8100 8.7 10 J 84 AISI52100 AISI52100 AISI52100
61811-2Z technical drawing 61811-2Z standard 55.00 72.00 9.00 8800 8100 8.7 10 J 84 AISI52100 AISI52100 AISI52100
S61811 technical drawing S61811 standard 55.00 72.00 9.00 8800 8100 8.7 10 J 84 AISI440 AISI440 AISI440
61811 technical drawing 61811 standard 55.00 72.00 9.00 8800 8100 8.7 10 J 84 AISI52100 AISI52100 AISI52100
61811 C3 technical drawing 61811 C3 standard 55.00 72.00 9.00 8800 8100 8.7 10 J 84 AISI52100 AISI52100 AISI52100
61911-2RS C3 technical drawing 61911-2RS C3 standard 55.00 80.00 13.00 16600 14100 8.1 9.6 J 185 AISI52100 AISI52100 AISI52100
61911-2Z C3 technical drawing 61911-2Z C3 standard 55.00 80.00 13.00 16600 14100 8.1 9.6 J 185 AISI52100 AISI52100 AISI52100
61911 C3 technical drawing 61911 C3 standard 55.00 80.00 13.00 16600 14100 8.1 9.6 J 185 AISI52100 AISI52100 AISI52100
S61911-2RS technical drawing S61911-2RS standard 55.00 80.00 13.00 16600 14100 8.1 9.6 J 185 AISI440 AISI440 AISI440
61911-2RS technical drawing 61911-2RS standard 55.00 80.00 13.00 16600 14100 8.1 9.6 J 185 AISI52100 AISI52100 AISI52100
61911-2Z technical drawing 61911-2Z standard 55.00 80.00 13.00 16600 14100 8.1 9.6 J 185 AISI52100 AISI52100 AISI52100
S61911 technical drawing S61911 standard 55.00 80.00 13.00 16600 14100 8.1 9.6 J 185 AISI440 AISI440 AISI440
61911 technical drawing 61911 standard 55.00 80.00 13.00 16600 14100 8.1 9.6 J 185 AISI52100 AISI52100 AISI52100
61812-2RS C3 technical drawing 61812-2RS C3 standard 60.00 78.00 10.00 11500 10600 8 9.4 J 105 AISI52100 AISI52100 AISI52100
61812-2Z C3 technical drawing 61812-2Z C3 standard 60.00 78.00 10.00 11500 10600 8 9.4 J 105 AISI52100 AISI52100 AISI52100
61812 C3 technical drawing 61812 C3 standard 60.00 78.00 10.00 11500 10600 8 9.4 J 105 AISI52100 AISI52100 AISI52100
S61812-2RS technical drawing S61812-2RS standard 60.00 78.00 10.00 11500 10600 8 9.4 J 105 AISI440 AISI440 AISI440
61812-2RS technical drawing 61812-2RS standard 60.00 78.00 10.00 11500 10600 8 9.4 J 105 AISI52100 AISI52100 AISI52100
61812 technical drawing 61812 standard 60.00 78.00 10.00 11500 10600 8 9.4 J 105 AISI52100 AISI52100 AISI52100
S61812 technical drawing S61812 standard 60.00 78.00 10.00 11500 10600 8 9.4 J 105 AISI440 AISI440 AISI440
61812-2Z technical drawing 61812-2Z standard 60.00 78.00 10.00 11500 10600 8 9.4 J 105 AISI52100 AISI52100 AISI52100
61912-2RS C3 technical drawing 61912-2RS C3 standard 60.00 85.00 13.00 20200 17300 7.5 8.9 J 192 AISI52100 AISI52100 AISI52100
61912-2Z C3 technical drawing 61912-2Z C3 standard 60.00 85.00 13.00 20200 17300 7.5 8.9 J 192 AISI52100 AISI52100 AISI52100
61912 C3 technical drawing 61912 C3 standard 60.00 85.00 13.00 20200 17300 7.5 8.9 J 192 AISI52100 AISI52100 AISI52100
S61912-2RS technical drawing S61912-2RS standard 60.00 85.00 13.00 20200 17300 7.5 8.9 J 192 AISI440 AISI440 AISI440
61912-2RS technical drawing 61912-2RS standard 60.00 85.00 13.00 20200 17300 7.5 8.9 J 192 AISI52100 AISI52100 AISI52100
61912-2Z technical drawing 61912-2Z standard 60.00 85.00 13.00 20200 17300 7.5 8.9 J 192 AISI52100 AISI52100 AISI52100
S61912 technical drawing S61912 standard 60.00 85.00 13.00 20200 17300 7.5 8.9 J 192 AISI440 AISI440 AISI440
61912 technical drawing 61912 standard 60.00 85.00 13.00 20200 17300 7.5 8.9 J 192 AISI52100 AISI52100 AISI52100
61813-2Z C3 technical drawing 61813-2Z C3 standard 65.00 85.00 10.00 11900 11500 7.3 8.6 J 126 AISI52100 AISI52100 AISI52100
61813-2RS C3 technical drawing 61813-2RS C3 standard 65.00 85.00 10.00 11900 11500 7.3 8.6 J 126 AISI52100 AISI52100 AISI52100
S61813-2RS technical drawing S61813-2RS standard 65.00 85.00 10.00 11900 11500 7.3 8.6 J 126 AISI440 AISI440 AISI440
61813-2RS technical drawing 61813-2RS standard 65.00 85.00 10.00 11900 11500 7.3 8.6 J 126 AISI52100 AISI52100 AISI52100
61813-2Z technical drawing 61813-2Z standard 65.00 85.00 10.00 11900 11500 7.3 8.6 J 126 AISI52100 AISI52100 AISI52100
S61813 technical drawing S61813 standard 65.00 85.00 10.00 11900 11500 7.3 8.6 J 126 AISI440 AISI440 AISI440
61813 technical drawing 61813 standard 65.00 85.00 10.00 11900 11500 7.3 8.6 J 126 AISI52100 AISI52100 AISI52100
61813 C3 technical drawing 61813 C3 standard 65.00 85.00 10.00 11900 11500 7.3 8.6 J 126 AISI52100 AISI52100 AISI52100
61913-2RS C3 technical drawing 61913-2RS C3 standard 65.00 90.00 13.00 17400 16100 7.1 8.4 J 212 AISI52100 AISI52100 AISI52100
61913-2Z C3 technical drawing 61913-2Z C3 standard 65.00 90.00 13.00 17400 16100 7.1 8.4 J 212 AISI52100 AISI52100 AISI52100
61913 C3 technical drawing 61913 C3 standard 65.00 90.00 13.00 17400 16100 7.1 8.4 J 212 AISI52100 AISI52100 AISI52100
S61913-2RS technical drawing S61913-2RS standard 65.00 90.00 13.00 17400 16100 7.1 8.4 J 212 AISI440 AISI440 AISI440
61913-2RS technical drawing 61913-2RS standard 65.00 90.00 13.00 17400 16100 7.1 8.4 J 212 AISI52100 AISI52100 AISI52100
61913-2Z technical drawing 61913-2Z standard 65.00 90.00 13.00 17400 16100 7.1 8.4 J 212 AISI52100 AISI52100 AISI52100
S61913 technical drawing S61913 standard 65.00 90.00 13.00 17400 16100 7.1 8.4 J 212 AISI440 AISI440 AISI440
61913 technical drawing 61913 standard 65.00 90.00 13.00 17400 16100 7.1 8.4 J 212 AISI52100 AISI52100 AISI52100
61814-2Z C3 technical drawing 61814-2Z C3 standard 70.00 90.00 10.00 12100 11900 6.8 8.1 J 134 AISI52100 AISI52100 AISI52100
61814-2RS C3 technical drawing 61814-2RS C3 standard 70.00 90.00 10.00 12100 11900 6.8 8.1 J 134 AISI52100 AISI52100 AISI52100
S61814-2RS technical drawing S61814-2RS standard 70.00 90.00 10.00 12100 11900 6.8 8.1 J 134 AISI440 AISI440 AISI440
61814-2RS technical drawing 61814-2RS standard 70.00 90.00 10.00 12100 11900 6.8 8.1 J 134 AISI52100 AISI52100 AISI52100
61814-2Z technical drawing 61814-2Z standard 70.00 90.00 10.00 12100 11900 6.8 8.1 J 134 AISI52100 AISI52100 AISI52100
S61814 technical drawing S61814 standard 70.00 90.00 10.00 12100 11900 6.8 8.1 J 134 AISI440 AISI440 AISI440
61814 technical drawing 61814 standard 70.00 90.00 10.00 12100 11900 6.8 8.1 J 134 AISI52100 AISI52100 AISI52100
61814 C3 technical drawing 61814 C3 standard 70.00 90.00 10.00 12100 11900 6.8 8.1 J 134 AISI52100 AISI52100 AISI52100
61914-2RS C3 technical drawing 61914-2RS C3 standard 70.00 100.00 16.00 23700 21200 6.4 7.6 J 344 AISI52100 AISI52100 AISI52100
61914-2Z C3 technical drawing 61914-2Z C3 standard 70.00 100.00 16.00 23700 21200 6.4 7.6 J 344 AISI52100 AISI52100 AISI52100
61914 C3 technical drawing 61914 C3 standard 70.00 100.00 16.00 23700 21200 6.4 7.6 J 344 AISI52100 AISI52100 AISI52100
S61914-2RS technical drawing S61914-2RS standard 70.00 100.00 16.00 23700 21200 6.4 7.6 J 344 AISI440 AISI440 AISI440
61914-2RS technical drawing 61914-2RS standard 70.00 100.00 16.00 23700 21200 6.4 7.6 J 344 AISI52100 AISI52100 AISI52100
61914-2Z technical drawing 61914-2Z standard 70.00 100.00 16.00 23700 21200 6.4 7.6 J 344 AISI52100 AISI52100 AISI52100
S61914 technical drawing S61914 standard 70.00 100.00 16.00 23700 21200 6.4 7.6 J 344 AISI440 AISI440 AISI440
61914 technical drawing 61914 standard 70.00 100.00 16.00 23700 21200 6.4 7.6 J 344 AISI52100 AISI52100 AISI52100
61815-2Z C3 technical drawing 61815-2Z C3 standard 75.00 95.00 10.00 12500 12900 12.5 12.9 J 144 AISI52100 AISI52100 AISI52100
61815-2RS C3 technical drawing 61815-2RS C3 standard 75.00 95.00 10.00 12500 12900 12.5 12.9 J 144 AISI52100 AISI52100 AISI52100
S61815-2RS technical drawing S61815-2RS standard 75.00 95.00 10.00 12500 12900 12.5 12.9 J 144 AISI440 AISI440 AISI440
61815-2RS technical drawing 61815-2RS standard 75.00 95.00 10.00 12500 12900 12.5 12.9 J 144 AISI52100 AISI52100 AISI52100
61815-2Z technical drawing 61815-2Z standard 75.00 95.00 10.00 12500 12900 12.5 12.9 J 144 AISI52100 AISI52100 AISI52100
S61815 technical drawing S61815 standard 75.00 95.00 10.00 12500 12900 12.5 12.9 J 144 AISI440 AISI440 AISI440
61815 technical drawing 61815 standard 75.00 95.00 10.00 12500 12900 12.5 12.9 J 144 AISI52100 AISI52100 AISI52100
61815 C3 technical drawing 61815 C3 standard 75.00 95.00 10.00 12500 12900 12.5 12.9 J 144 AISI52100 AISI52100 AISI52100
61915-2RS C3 technical drawing 61915-2RS C3 standard 75.00 105.00 16.00 24400 22600 6.1 7.2 J 365 AISI52100 AISI52100 AISI52100
61915-2Z C3 technical drawing 61915-2Z C3 standard 75.00 105.00 16.00 24400 22600 6.1 7.2 J 365 AISI52100 AISI52100 AISI52100
61915 C3 technical drawing 61915 C3 standard 75.00 105.00 16.00 24400 22600 6.1 7.2 J 365 AISI52100 AISI52100 AISI52100
S61915-2RS technical drawing S61915-2RS standard 75.00 105.00 16.00 24400 22600 6.1 7.2 J 365 AISI440 AISI440 AISI440
61915-2RS technical drawing 61915-2RS standard 75.00 105.00 16.00 24400 22600 6.1 7.2 J 365 AISI52100 AISI52100 AISI52100
61915-2Z technical drawing 61915-2Z standard 75.00 105.00 16.00 24400 22600 6.1 7.2 J 365 AISI52100 AISI52100 AISI52100
S61915 technical drawing S61915 standard 75.00 105.00 16.00 24400 22600 6.1 7.2 J 365 AISI440 AISI440 AISI440
61915 technical drawing 61915 standard 75.00 105.00 16.00 24400 22600 6.1 7.2 J 365 AISI52100 AISI52100 AISI52100
61816-2RS C3 technical drawing 61816-2RS C3 standard 80.00 100.00 10.00 12700 13300 12.7 13.3 J 150 AISI52100 AISI52100 AISI52100
61816-2Z C3 technical drawing 61816-2Z C3 standard 80.00 100.00 10.00 12700 13300 12.7 13.3 J 150 AISI52100 AISI52100 AISI52100
61816 C3 technical drawing 61816 C3 standard 80.00 100.00 10.00 12700 13300 12.7 13.3 J 150 AISI52100 AISI52100 AISI52100
S61816-2RS technical drawing S61816-2RS standard 80.00 100.00 10.00 12700 13300 12.7 13.3 J 150 AISI440 AISI440 AISI440
61816-2RS technical drawing 61816-2RS standard 80.00 100.00 10.00 12700 13300 12.7 13.3 J 150 AISI52100 AISI52100 AISI52100
61816 technical drawing 61816 standard 80.00 100.00 10.00 12700 13300 12.7 13.3 J 150 AISI52100 AISI52100 AISI52100
S61816 technical drawing S61816 standard 80.00 100.00 10.00 12700 13300 12.7 13.3 J 150 AISI440 AISI440 AISI440
61816-2Z technical drawing 61816-2Z standard 80.00 100.00 10.00 12700 13300 12.7 13.3 J 150 AISI52100 AISI52100 AISI52100
61916-2RS C3 technical drawing 61916-2RS C3 standard 80.00 110.00 16.00 25000 24000 5.7 6.8 J 384 AISI52100 AISI52100 AISI52100
61916-2Z C3 technical drawing 61916-2Z C3 standard 80.00 110.00 16.00 25000 24000 5.7 6.8 J 384 AISI52100 AISI52100 AISI52100
61916 C3 technical drawing 61916 C3 standard 80.00 110.00 16.00 25000 24000 5.7 6.8 J 384 AISI52100 AISI52100 AISI52100
S61916-2RS technical drawing S61916-2RS standard 80.00 110.00 16.00 25000 24000 5.7 6.8 J 384 AISI440 AISI440 AISI440
61916-2RS technical drawing 61916-2RS standard 80.00 110.00 16.00 25000 24000 5.7 6.8 J 384 AISI52100 AISI52100 AISI52100
61916-2Z technical drawing 61916-2Z standard 80.00 110.00 16.00 25000 24000 5.7 6.8 J 384 AISI52100 AISI52100 AISI52100
S61916 technical drawing S61916 standard 80.00 110.00 16.00 25000 24000 5.7 6.8 J 384 AISI440 AISI440 AISI440
61916 technical drawing 61916 standard 80.00 110.00 16.00 25000 24000 5.7 6.8 J 384 AISI52100 AISI52100 AISI52100
61817-2Z C3 technical drawing 61817-2Z C3 standard 85.00 110.00 13.00 18700 19000 5.6 6.6 J 266 AISI52100 AISI52100 AISI52100
61817-2RS C3 technical drawing 61817-2RS C3 standard 85.00 110.00 13.00 18700 19000 5.6 6.6 J 266 AISI52100 AISI52100 AISI52100
S61817-2RS technical drawing S61817-2RS standard 85.00 110.00 13.00 18700 19000 5.6 6.6 J 266 AISI440 AISI440 AISI440
61817-2RS technical drawing 61817-2RS standard 85.00 110.00 13.00 18700 19000 5.6 6.6 J 266 AISI52100 AISI52100 AISI52100
61817-2Z technical drawing 61817-2Z standard 85.00 110.00 13.00 18700 19000 5.6 6.6 J 266 AISI52100 AISI52100 AISI52100
S61817 technical drawing S61817 standard 85.00 110.00 13.00 18700 19000 5.6 6.6 J 266 AISI440 AISI440 AISI440
61817 technical drawing 61817 standard 85.00 110.00 13.00 18700 19000 5.6 6.6 J 266 AISI52100 AISI52100 AISI52100
61817 C3 technical drawing 61817 C3 standard 85.00 110.00 13.00 18700 19000 5.6 6.6 J 266 AISI52100 AISI52100 AISI52100
61917-2RS C3 technical drawing 61917-2RS C3 standard 85.00 120.00 18.00 31900 29600 5.3 6.3 J 540 AISI52100 AISI52100 AISI52100
61917-2Z C3 technical drawing 61917-2Z C3 standard 85.00 120.00 18.00 31900 29600 5.3 6.3 J 540 AISI52100 AISI52100 AISI52100
61917 C3 technical drawing 61917 C3 standard 85.00 120.00 18.00 31900 29600 5.3 6.3 J 540 AISI52100 AISI52100 AISI52100
S61917-2RS technical drawing S61917-2RS standard 85.00 120.00 18.00 31900 29600 5.3 6.3 J 540 AISI440 AISI440 AISI440
61917-2RS technical drawing 61917-2RS standard 85.00 120.00 18.00 31900 29600 5.3 6.3 J 540 AISI52100 AISI52100 AISI52100
61917-2Z technical drawing 61917-2Z standard 85.00 120.00 18.00 31900 29600 5.3 6.3 J 540 AISI52100 AISI52100 AISI52100
S61917 technical drawing S61917 standard 85.00 120.00 18.00 31900 29600 5.3 6.3 J 540 AISI440 AISI440 AISI440
61917 technical drawing 61917 standard 85.00 120.00 18.00 31900 29600 5.3 6.3 J 540 AISI52100 AISI52100 AISI52100
61818-2RS C3 technical drawing 61818-2RS C3 standard 90.00 115.00 13.00 19000 19700 5.3 6.3 J 280 AISI52100 AISI52100 AISI52100
61818-2Z C3 technical drawing 61818-2Z C3 standard 90.00 115.00 13.00 19000 19700 5.3 6.3 J 280 AISI52100 AISI52100 AISI52100
61818 C3 technical drawing 61818 C3 standard 90.00 115.00 13.00 19000 19700 5.3 6.3 J 280 AISI52100 AISI52100 AISI52100
S61818-2RS technical drawing S61818-2RS standard 90.00 115.00 13.00 19000 19700 5.3 6.3 J 280 AISI440 AISI440 AISI440
61818-2RS technical drawing 61818-2RS standard 90.00 115.00 13.00 19000 19700 5.3 6.3 J 280 AISI52100 AISI52100 AISI52100
61818 technical drawing 61818 standard 90.00 115.00 13.00 19000 19700 5.3 6.3 J 280 AISI52100 AISI52100 AISI52100
S61818 technical drawing S61818 standard 90.00 115.00 13.00 19000 19700 5.3 6.3 J 280 AISI440 AISI440 AISI440
61818-2Z technical drawing 61818-2Z standard 90.00 115.00 13.00 19000 19700 5.3 6.3 J 280 AISI52100 AISI52100 AISI52100
61918-2RS C3 technical drawing 61918-2RS C3 standard 90.00 125.00 18.00 32800 31600 5.1 6 J 570 AISI52100 AISI52100 AISI52100
61918-2Z C3 technical drawing 61918-2Z C3 standard 90.00 125.00 18.00 32800 31600 5.1 6 J 570 AISI52100 AISI52100 AISI52100
61918 C3 technical drawing 61918 C3 standard 90.00 125.00 18.00 32800 31600 5.1 6 J 570 AISI52100 AISI52100 AISI52100
S61918-2RS technical drawing S61918-2RS standard 90.00 125.00 18.00 32800 31600 5.1 6 J 570 AISI440 AISI440 AISI440
61918-2RS technical drawing 61918-2RS standard 90.00 125.00 18.00 32800 31600 5.1 6 J 570 AISI52100 AISI52100 AISI52100
61918-2Z technical drawing 61918-2Z standard 90.00 125.00 18.00 32800 31600 5.1 6 J 570 AISI52100 AISI52100 AISI52100
S61918 technical drawing S61918 standard 90.00 125.00 18.00 32800 31600 5.1 6 J 570 AISI440 AISI440 AISI440
61918 technical drawing 61918 standard 90.00 125.00 18.00 32800 31600 5.1 6 J 570 AISI52100 AISI52100 AISI52100
61820-2Z C3 technical drawing 61820-2Z C3 standard 100.00 125.00 13.00 20100 22000 4.8 5.1 J 310 AISI52100 AISI52100 AISI52100
61820-2RS C3 technical drawing 61820-2RS C3 standard 100.00 125.00 13.00 20100 22000 4.8 5.1 J 310 AISI52100 AISI52100 AISI52100
S61820-2RS technical drawing S61820-2RS standard 100.00 125.00 13.00 20100 22000 4.8 5.1 J 310 AISI440 AISI440 AISI440
61820-2RS technical drawing 61820-2RS standard 100.00 125.00 13.00 20100 22000 4.8 5.1 J 310 AISI52100 AISI52100 AISI52100
61820-2Z technical drawing 61820-2Z standard 100.00 125.00 13.00 20100 22000 4.8 5.1 J 310 AISI52100 AISI52100 AISI52100
S61820 technical drawing S61820 standard 100.00 125.00 13.00 20100 22000 4.8 5.1 J 310 AISI440 AISI440 AISI440
61820 technical drawing 61820 standard 100.00 125.00 13.00 20100 22000 4.8 5.1 J 310 AISI52100 AISI52100 AISI52100
61820 C3 technical drawing 61820 C3 standard 100.00 125.00 13.00 20100 22000 4.8 5.1 J 310 AISI52100 AISI52100 AISI52100
61920-2RS C3 technical drawing 61920-2RS C3 standard 100.00 140.00 20.00 42300 41500 4.5 5.3 J 830 AISI52100 AISI52100 AISI52100
61920-2Z C3 technical drawing 61920-2Z C3 standard 100.00 140.00 20.00 42300 41500 4.5 5.3 J 830 AISI52100 AISI52100 AISI52100
61920 C3 technical drawing 61920 C3 standard 100.00 140.00 20.00 42300 41500 4.5 5.3 J 830 AISI52100 AISI52100 AISI52100
S61920-2RS technical drawing S61920-2RS standard 100.00 140.00 20.00 42300 41500 4.5 5.3 J 830 AISI440 AISI440 AISI440
61920-2RS technical drawing 61920-2RS standard 100.00 140.00 20.00 42300 41500 4.5 5.3 J 830 AISI52100 AISI52100 AISI52100
61920-2Z technical drawing 61920-2Z standard 100.00 140.00 20.00 42300 41500 4.5 5.3 J 830 AISI52100 AISI52100 AISI52100
S61920 technical drawing S61920 standard 100.00 140.00 20.00 42300 41500 4.5 5.3 J 830 AISI440 AISI440 AISI440
61920 technical drawing 61920 standard 100.00 140.00 20.00 42300 41500 4.5 5.3 J 830 AISI52100 AISI52100 AISI52100
61821-2Z C3 technical drawing 61821-2Z C3 standard 105.00 130.00 13.00 20800 23600 4.6 5.3 J 330 AISI52100 AISI52100 AISI52100
61821-2RS C3 technical drawing 61821-2RS C3 standard 105.00 130.00 13.00 20800 23600 4.6 5.3 J 330 AISI52100 AISI52100 AISI52100
S61821-2RS technical drawing S61821-2RS standard 105.00 130.00 13.00 20800 23600 4.6 5.3 J 330 AISI440 AISI440 AISI440
61821-2RS technical drawing 61821-2RS standard 105.00 130.00 13.00 20800 23600 4.6 5.3 J 330 AISI52100 AISI52100 AISI52100
61821-2Z technical drawing 61821-2Z standard 105.00 130.00 13.00 20800 23600 4.6 5.3 J 330 AISI52100 AISI52100 AISI52100
S61821 technical drawing S61821 standard 105.00 130.00 13.00 20800 23600 4.6 5.3 J 330 AISI440 AISI440 AISI440
61821 technical drawing 61821 standard 105.00 130.00 13.00 20800 23600 4.6 5.3 J 330 AISI52100 AISI52100 AISI52100
61821 C3 technical drawing 61821 C3 standard 105.00 130.00 13.00 20800 23600 4.6 5.3 J 330 AISI52100 AISI52100 AISI52100
61921-2RS C3 technical drawing 61921-2RS C3 standard 105.00 145.00 20.00 44200 44000 4.3 5 J 870 AISI52100 AISI52100 AISI52100
61921-2Z C3 technical drawing 61921-2Z C3 standard 105.00 145.00 20.00 44200 44000 4.3 5 J 870 AISI52100 AISI52100 AISI52100
61921 C3 technical drawing 61921 C3 standard 105.00 145.00 20.00 44200 44000 4.3 5 J 870 AISI52100 AISI52100 AISI52100
S61921-2RS technical drawing S61921-2RS standard 105.00 145.00 20.00 44200 44000 4.3 5 J 870 AISI440 AISI440 AISI440
61921-2RS technical drawing 61921-2RS standard 105.00 145.00 20.00 44200 44000 4.3 5 J 870 AISI52100 AISI52100 AISI52100
61921-2Z technical drawing 61921-2Z standard 105.00 145.00 20.00 44200 44000 4.3 5 J 870 AISI52100 AISI52100 AISI52100
S61921 technical drawing S61921 standard 105.00 145.00 20.00 44200 44000 4.3 5 J 870 AISI440 AISI440 AISI440
61921 technical drawing 61921 standard 105.00 145.00 20.00 44200 44000 4.3 5 J 870 AISI52100 AISI52100 AISI52100
61822-2RS C3 technical drawing 61822-2RS C3 standard 110.00 140.00 16.00 28000 30500 4.3 5 J 500 AISI52100 AISI52100 AISI52100
61822-2Z C3 technical drawing 61822-2Z C3 standard 110.00 140.00 16.00 28000 30500 4.3 5 J 500 AISI52100 AISI52100 AISI52100
61822 C3 technical drawing 61822 C3 standard 110.00 140.00 16.00 28000 30500 4.3 5 J 500 AISI52100 AISI52100 AISI52100
S61822-2RS technical drawing S61822-2RS standard 110.00 140.00 16.00 28000 30500 4.3 5 J 500 AISI440 AISI440 AISI440
61822-2RS technical drawing 61822-2RS standard 110.00 140.00 16.00 28000 30500 4.3 5 J 500 AISI52100 AISI52100 AISI52100
61822 technical drawing 61822 standard 110.00 140.00 16.00 28000 30500 4.3 5 J 500 AISI52100 AISI52100 AISI52100
S61822 technical drawing S61822 standard 110.00 140.00 16.00 28000 30500 4.3 5 J 500 AISI440 AISI440 AISI440
61822-2Z technical drawing 61822-2Z standard 110.00 140.00 16.00 28000 30500 4.3 5 J 500 AISI52100 AISI52100 AISI52100
61922-2RS technical drawing 61922-2RS standard 110.00 150.00 20.00 43600 45000 4 4.8 J 900 AISI52100 AISI52100 AISI52100
61922-2Z C3 technical drawing 61922-2Z C3 standard 110.00 150.00 20.00 43600 45000 4 4.8 J 900 AISI52100 AISI52100 AISI52100
61922 C3 technical drawing 61922 C3 standard 110.00 150.00 20.00 43600 45000 4 4.8 J 900 AISI52100 AISI52100 AISI52100
S61922-2RS technical drawing S61922-2RS standard 110.00 150.00 20.00 43600 45000 4 4.8 J 900 AISI440 AISI440 AISI440
61922-2RS technical drawing 61922-2RS standard 110.00 150.00 20.00 43600 45000 4 4.8 J 900 AISI52100 AISI52100 AISI52100
61922-2Z technical drawing 61922-2Z standard 110.00 150.00 20.00 43600 45000 4 4.8 J 900 AISI52100 AISI52100 AISI52100
S61922 technical drawing S61922 standard 110.00 150.00 20.00 43600 45000 4 4.8 J 900 AISI440 AISI440 AISI440
61922 technical drawing 61922 standard 110.00 150.00 20.00 43600 45000 4 4.8 J 900 AISI52100 AISI52100 AISI52100
61824-2Z C3 technical drawing 61824-2Z C3 standard 120.00 150.00 16.00 29000 33000 4 4.6 J 550 AISI52100 AISI52100 AISI52100
61824-2RS C3 technical drawing 61824-2RS C3 standard 120.00 150.00 16.00 29000 33000 4 4.6 J 550 AISI52100 AISI52100 AISI52100
S61824-2RS technical drawing S61824-2RS standard 120.00 150.00 16.00 29000 33000 4 4.6 J 550 AISI440 AISI440 AISI440
61824-2RS technical drawing 61824-2RS standard 120.00 150.00 16.00 29000 33000 4 4.6 J 550 AISI52100 AISI52100 AISI52100
61824-2Z technical drawing 61824-2Z standard 120.00 150.00 16.00 29000 33000 4 4.6 J 550 AISI52100 AISI52100 AISI52100
S61824 technical drawing S61824 standard 120.00 150.00 16.00 29000 33000 4 4.6 J 550 AISI440 AISI440 AISI440
61824 technical drawing 61824 standard 120.00 150.00 16.00 29000 33000 4 4.6 J 550 AISI52100 AISI52100 AISI52100
61824 C3 technical drawing 61824 C3 standard 120.00 150.00 16.00 29000 33000 4 4.6 J 550 AISI52100 AISI52100 AISI52100
61924-2RS C3 technical drawing 61924-2RS C3 standard 120.00 165.00 22.00 55300 57000 3.6 4.3 J 1200 AISI52100 AISI52100 AISI52100
61924-2Z C3 technical drawing 61924-2Z C3 standard 120.00 165.00 22.00 55300 57000 3.6 4.3 J 1200 AISI52100 AISI52100 AISI52100
61924 C3 technical drawing 61924 C3 standard 120.00 165.00 22.00 55300 57000 3.6 4.3 J 1200 AISI52100 AISI52100 AISI52100
S61924-2RS technical drawing S61924-2RS standard 120.00 165.00 22.00 55300 57000 3.6 4.3 J 1200 AISI440 AISI440 AISI440
61924-2RS technical drawing 61924-2RS standard 120.00 165.00 22.00 55300 57000 3.6 4.3 J 1200 AISI52100 AISI52100 AISI52100
61924-2Z technical drawing 61924-2Z standard 120.00 165.00 22.00 55300 57000 3.6 4.3 J 1200 AISI52100 AISI52100 AISI52100
S61924 technical drawing S61924 standard 120.00 165.00 22.00 55300 57000 3.6 4.3 J 1200 AISI440 AISI440 AISI440
61924 technical drawing 61924 standard 120.00 165.00 22.00 55300 57000 3.6 4.3 J 1200 AISI52100 AISI52100 AISI52100
61826-2Z C3 technical drawing 61826-2Z C3 standard 130.00 165.00 18.00 38000 43000 3.6 4.4 J 780 AISI52100 AISI52100 AISI52100
61826-2RS C3 technical drawing 61826-2RS C3 standard 130.00 165.00 18.00 38000 43000 3.6 4.4 J 780 AISI52100 AISI52100 AISI52100
S61826-2RS technical drawing S61826-2RS standard 130.00 165.00 18.00 38000 43000 3.6 4.4 J 780 AISI440 AISI440 AISI440
61826-2RS technical drawing 61826-2RS standard 130.00 165.00 18.00 38000 43000 3.6 4.4 J 780 AISI52100 AISI52100 AISI52100
61826-2Z technical drawing 61826-2Z standard 130.00 165.00 18.00 38000 43000 3.6 4.4 J 780 AISI52100 AISI52100 AISI52100
S61826 technical drawing S61826 standard 130.00 165.00 18.00 38000 43000 3.6 4.4 J 780 AISI440 AISI440 AISI440
61826 technical drawing 61826 standard 130.00 165.00 18.00 38000 43000 3.6 4.4 J 780 AISI52100 AISI52100 AISI52100
61826 C3 technical drawing 61826 C3 standard 130.00 165.00 18.00 38000 43000 3.6 4.4 J 780 AISI52100 AISI52100 AISI52100
61926-2RS C3 technical drawing 61926-2RS C3 standard 130.00 180.00 24.00 65000 67000 3.4 4 J 1600 AISI52100 AISI52100 AISI52100
61926-2Z C3 technical drawing 61926-2Z C3 standard 130.00 180.00 24.00 65000 67000 3.4 4 J 1600 AISI52100 AISI52100 AISI52100
61926 C3 technical drawing 61926 C3 standard 130.00 180.00 24.00 65000 67000 3.4 4 J 1600 AISI52100 AISI52100 AISI52100
S61926-2RS technical drawing S61926-2RS standard 130.00 180.00 24.00 65000 67000 3.4 4 J 1600 AISI440 AISI440 AISI440
61926-2RS technical drawing 61926-2RS standard 130.00 180.00 24.00 65000 67000 3.4 4 J 1600 AISI52100 AISI52100 AISI52100
61926-2Z technical drawing 61926-2Z standard 130.00 180.00 24.00 65000 67000 3.4 4 J 1600 AISI52100 AISI52100 AISI52100
S61926 technical drawing S61926 standard 130.00 180.00 24.00 65000 67000 3.4 4 J 1600 AISI440 AISI440 AISI440
61926 technical drawing 61926 standard 130.00 180.00 24.00 65000 67000 3.4 4 J 1600 AISI52100 AISI52100 AISI52100
61828-2Z C3 technical drawing 61828-2Z C3 standard 140.00 175.00 18.00 39000 46000 3.4 4.1 J 860 AISI52100 AISI52100 AISI52100
61828 C3 technical drawing 61828 C3 standard 140.00 175.00 18.00 39000 46000 3.4 4.1 J 860 AISI52100 AISI52100 AISI52100
61828-2RS C3 technical drawing 61828-2RS C3 standard 140.00 175.00 18.00 39000 46000 3.4 4.1 J 860 AISI52100 AISI52100 AISI52100
S61828-2RS technical drawing S61828-2RS standard 140.00 175.00 18.00 39000 46000 3.4 4.1 J 860 AISI440 AISI440 AISI440
61828-2RS technical drawing 61828-2RS standard 140.00 175.00 18.00 39000 46000 3.4 4.1 J 860 AISI52100 AISI52100 AISI52100
61828-2Z technical drawing 61828-2Z standard 140.00 175.00 18.00 39000 46000 3.4 4.1 J 860 AISI52100 AISI52100 AISI52100
S61828 technical drawing S61828 standard 140.00 175.00 18.00 39000 46000 3.4 4.1 J 860 AISI440 AISI440 AISI440
61828 technical drawing 61828 standard 140.00 175.00 18.00 39000 46000 3.4 4.1 J 860 AISI52100 AISI52100 AISI52100
61928-2RS C3 technical drawing 61928-2RS C3 standard 140.00 190.00 24.00 66300 72000 3.2 3.8 J 1700 AISI52100 AISI52100 AISI52100
61928-2Z C3 technical drawing 61928-2Z C3 standard 140.00 190.00 24.00 66300 72000 3.2 3.8 J 1700 AISI52100 AISI52100 AISI52100
61928 C3 technical drawing 61928 C3 standard 140.00 190.00 24.00 66300 72000 3.2 3.8 J 1700 AISI52100 AISI52100 AISI52100
S61928 technical drawing S61928 standard 140.00 190.00 24.00 66300 72000 3.2 3.8 J 1700 AISI440 AISI440 AISI440
S61928-2RS technical drawing S61928-2RS standard 140.00 190.00 24.00 66300 72000 3.2 3.8 J 1700 AISI440 AISI440 AISI440
61928-2RS technical drawing 61928-2RS standard 140.00 190.00 24.00 66300 72000 3.2 3.8 J 1700 AISI52100 AISI52100 AISI52100
61928-2Z technical drawing 61928-2Z standard 140.00 190.00 24.00 66300 72000 3.2 3.8 J 1700 AISI52100 AISI52100 AISI52100
61928 technical drawing 61928 standard 140.00 190.00 24.00 66300 72000 3.2 3.8 J 1700 AISI52100 AISI52100 AISI52100
61830 C3 technical drawing 61830 C3 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI52100 AISI52100 AISI52100
61830-2Z C3 technical drawing 61830-2Z C3 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI52100 AISI52100 AISI52100
61830-2RS C3 technical drawing 61830-2RS C3 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI52100 AISI52100 AISI52100
61830 C3 technical drawing 61830 C3 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI52100 AISI52100 AISI52100
61930 C3 technical drawing 61930 C3 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 3000 AISI52100 AISI52100 AISI52100
61930 technical drawing 61930 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 3000 AISI52100 AISI52100 AISI52100
61830 technical drawing 61830 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI52100 AISI52100 AISI52100
61830 technical drawing 61830 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI52100 AISI52100 AISI52100
S61830 technical drawing S61830 standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI440 AISI440 AISI440
61830-2Z technical drawing 61830-2Z standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI52100 AISI52100 AISI52100
61830-2RS technical drawing 61830-2RS standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI52100 AISI52100 AISI52100
S61830-2RS technical drawing S61830-2RS standard 150.00 190.00 20.00 54000 60000 3.2 3.8 J 1200 AISI440 AISI440 AISI440
61932 MB C3 technical drawing 61932 MB C3 standard 160.00 200.00 20.00 55000 62000 3 3.6 MB 3200 AISI52100 AISI52100 AISI52100
61932 MA C3 technical drawing 61932 MA C3 standard 160.00 200.00 20.00 55000 62000 3 3.6 MA 3200 AISI52100 AISI52100 AISI52100
61932 M C3 technical drawing 61932 M C3 standard 160.00 200.00 20.00 55000 62000 3 3.6 M 3200 AISI52100 AISI52100 AISI52100
61932 C3 technical drawing 61932 C3 standard 160.00 200.00 20.00 55000 62000 3 3.6 J 3200 AISI52100 AISI52100 AISI52100
61832 C3 technical drawing 61832 C3 standard 160.00 200.00 20.00 55000 62000 3 3.6 J 1250 AISI52100 AISI52100 AISI52100
61932 MB technical drawing 61932 MB standard 160.00 200.00 20.00 55000 62000 3 3.6 MB 3200 AISI52100 AISI52100 AISI52100
61932 MA technical drawing 61932 MA standard 160.00 200.00 20.00 55000 62000 3 3.6 MA 3200 AISI52100 AISI52100 AISI52100
61932 M technical drawing 61932 M standard 160.00 200.00 20.00 55000 62000 3 3.6 M 3200 AISI52100 AISI52100 AISI52100
61932 technical drawing 61932 standard 160.00 200.00 20.00 55000 62000 3 3.6 J 3200 AISI52100 AISI52100 AISI52100
61832 technical drawing 61832 standard 160.00 200.00 20.00 55000 62000 3 3.6 J 1250 AISI52100 AISI52100 AISI52100
61834 MA C3 technical drawing 61834 MA C3 standard 170.00 215.00 22.00 61000 73000 2.6 3.2 MA 1630 AISI52100 AISI52100 AISI52100
61834 M C3 technical drawing 61834 M C3 standard 170.00 215.00 22.00 61000 73000 2.6 3.2 M 1630 AISI52100 AISI52100 AISI52100
61834 C3 technical drawing 61834 C3 standard 170.00 215.00 22.00 61000 73000 2.6 3.2 J 1630 AISI52100 AISI52100 AISI52100
61834MB technical drawing 61834MB standard 170.00 215.00 22.00 61000 73000 2.6 3.2 MB 1630 AISI52100 AISI52100 AISI52100
61834 MA technical drawing 61834 MA standard 170.00 215.00 22.00 61000 73000 2.6 3.2 MA 1630 AISI52100 AISI52100 AISI52100
61834 M technical drawing 61834 M standard 170.00 215.00 22.00 61000 73000 2.6 3.2 M 1630 AISI52100 AISI52100 AISI52100
61834 technical drawing 61834 standard 170.00 215.00 22.00 61000 73000 2.6 3.2 J 1630 AISI52100 AISI52100 AISI52100
61834 MB C3 technical drawing 61834 MB C3 standard 170.00 215.00 22.00 61000 73000 2.6 3.2 MB 1630 AISI52100 AISI52100 AISI52100
61934 MB C3 technical drawing 61934 MB C3 standard 170.00 230.00 28.00 67500 80000 2.4 2.9 MB 3400 AISI52100 AISI52100 AISI52100
61934 MA C3 technical drawing 61934 MA C3 standard 170.00 230.00 28.00 67500 80000 2.4 2.9 MA 3400 AISI52100 AISI52100 AISI52100
61934 M C3 technical drawing 61934 M C3 standard 170.00 230.00 28.00 67500 80000 2.4 2.9 M 3400 AISI52100 AISI52100 AISI52100
61934 C3 technical drawing 61934 C3 standard 170.00 230.00 28.00 67500 80000 2.4 2.9 J 3400 AISI52100 AISI52100 AISI52100
61934 MB technical drawing 61934 MB standard 170.00 230.00 28.00 67500 80000 2.4 2.9 MB 3400 AISI52100 AISI52100 AISI52100
61934 MA technical drawing 61934 MA standard 170.00 230.00 28.00 67500 80000 2.4 2.9 MA 3400 AISI52100 AISI52100 AISI52100
61934 M technical drawing 61934 M standard 170.00 230.00 28.00 67500 80000 2.4 2.9 M 3400 AISI52100 AISI52100 AISI52100
61934 technical drawing 61934 standard 170.00 230.00 28.00 67500 80000 2.4 2.9 J 3400 AISI52100 AISI52100 AISI52100
61836 MB C3 technical drawing 61836 MB C3 standard 180.00 225.00 22.00 62000 76000 2.4 3 MB 1720 AISI52100 AISI52100 AISI52100
61836 MA C3 technical drawing 61836 MA C3 standard 180.00 225.00 22.00 62000 76000 2.4 3 MA 1720 AISI52100 AISI52100 AISI52100
61836 M C3 technical drawing 61836 M C3 standard 180.00 225.00 22.00 62000 76000 2.4 3 M 1720 AISI52100 AISI52100 AISI52100
61836 C3 technical drawing 61836 C3 standard 180.00 225.00 22.00 62000 76000 2.4 3 J 1720 AISI52100 AISI52100 AISI52100
61836 MB technical drawing 61836 MB standard 180.00 225.00 22.00 62000 76000 2.4 3 MB 1720 AISI52100 AISI52100 AISI52100
61836 MA technical drawing 61836 MA standard 180.00 225.00 22.00 62000 76000 2.4 3 MA 1720 AISI52100 AISI52100 AISI52100
61836 M technical drawing 61836 M standard 180.00 225.00 22.00 62000 76000 2.4 3 M 1720 AISI52100 AISI52100 AISI52100
61836 technical drawing 61836 standard 180.00 225.00 22.00 62000 76000 2.4 3 J 1720 AISI52100 AISI52100 AISI52100
61936 technical drawing 61936 standard 180.00 250.00 33.00 86000 99500 2.2 2.6 J 4500 AISI52100 AISI52100 AISI52100
61936 MB C3 technical drawing 61936 MB C3 standard 180.00 250.00 33.00 86000 99500 2.2 2.6 MB 4500 AISI52100 AISI52100 AISI52100
61936 MA C3 technical drawing 61936 MA C3 standard 180.00 250.00 33.00 86000 99500 2.2 2.6 MA 4500 AISI52100 AISI52100 AISI52100
61936 M C3 technical drawing 61936 M C3 standard 180.00 250.00 33.00 86000 99500 2.2 2.6 M 4500 AISI52100 AISI52100 AISI52100
61936 C3 technical drawing 61936 C3 standard 180.00 250.00 33.00 86000 99500 2.2 2.6 J 4500 AISI52100 AISI52100 AISI52100
61936 MB technical drawing 61936 MB standard 180.00 250.00 33.00 86000 99500 2.2 2.6 MB 4500 AISI52100 AISI52100 AISI52100
61936 MA technical drawing 61936 MA standard 180.00 250.00 33.00 86000 99500 2.2 2.6 MA 4500 AISI52100 AISI52100 AISI52100
61936 M technical drawing 61936 M standard 180.00 250.00 33.00 86000 99500 2.2 2.6 M 4500 AISI52100 AISI52100 AISI52100
61838 MB C3 technical drawing 61838 MB C3 standard 190.00 240.00 24.00 75000 92000 2.2 2.8 MB 2200 AISI52100 AISI52100 AISI52100
61838 MA C3 technical drawing 61838 MA C3 standard 190.00 240.00 24.00 75000 92000 2.2 2.8 MA 2200 AISI52100 AISI52100 AISI52100
61838 M C3 technical drawing 61838 M C3 standard 190.00 240.00 24.00 75000 92000 2.2 2.8 M 2200 AISI52100 AISI52100 AISI52100
61838 C3 technical drawing 61838 C3 standard 190.00 240.00 24.00 75000 92000 2.2 2.8 J 2200 AISI52100 AISI52100 AISI52100
61838 M technical drawing 61838 M standard 190.00 240.00 24.00 75000 92000 2.2 2.8 M 2200 AISI52100 AISI52100 AISI52100
61838 technical drawing 61838 standard 190.00 240.00 24.00 75000 92000 2.2 2.8 J 2200 AISI52100 AISI52100 AISI52100
61838 MA technical drawing 61838 MA standard 190.00 240.00 24.00 75000 92000 2.2 2.8 MA 2200 AISI52100 AISI52100 AISI52100
61838 MB technical drawing 61838 MB standard 190.00 240.00 24.00 75000 92000 2.2 2.8 MB 2200 AISI52100 AISI52100 AISI52100
61938 MB technical drawing 61938 MB standard 190.00 260.00 33.00 88500 105000 2 2.6 MB 4800 AISI52100 AISI52100 AISI52100
61938 MB C3 technical drawing 61938 MB C3 standard 190.00 260.00 33.00 88500 105000 2 2.6 MB 4800 AISI52100 AISI52100 AISI52100
61938 MA C3 technical drawing 61938 MA C3 standard 190.00 260.00 33.00 88500 105000 2 2.6 MA 4800 AISI52100 AISI52100 AISI52100
61938 M C3 technical drawing 61938 M C3 standard 190.00 260.00 33.00 88500 105000 2 2.6 M 4800 AISI52100 AISI52100 AISI52100
61938 C3 technical drawing 61938 C3 standard 190.00 260.00 33.00 88500 105000 2 2.6 J 4800 AISI52100 AISI52100 AISI52100
61938 M technical drawing 61938 M standard 190.00 260.00 33.00 88500 105000 2 2.6 M 4800 AISI52100 AISI52100 AISI52100
61938 technical drawing 61938 standard 190.00 260.00 33.00 88500 105000 2 2.6 J 4800 AISI52100 AISI52100 AISI52100
61938 MA technical drawing 61938 MA standard 190.00 260.00 33.00 88500 105000 2 2.6 MA 4800 AISI52100 AISI52100 AISI52100
61840 MA C3 technical drawing 61840 MA C3 standard 200.00 250.00 24.00 76000 95000 2.1 2.6 MA 2300 AISI52100 AISI52100 AISI52100
61840 M C3 technical drawing 61840 M C3 standard 200.00 250.00 24.00 76000 95000 2.1 2.6 M 2300 AISI52100 AISI52100 AISI52100
61840 C3 technical drawing 61840 C3 standard 200.00 250.00 24.00 76000 95000 2.1 2.6 J 2300 AISI52100 AISI52100 AISI52100
61840 MB technical drawing 61840 MB standard 200.00 250.00 24.00 76000 95000 2.1 2.6 MB 2300 AISI52100 AISI52100 AISI52100
61840 MA technical drawing 61840 MA standard 200.00 250.00 24.00 76000 95000 2.1 2.6 MA 2300 AISI52100 AISI52100 AISI52100
61840 M technical drawing 61840 M standard 200.00 250.00 24.00 76000 95000 2.1 2.6 M 2300 AISI52100 AISI52100 AISI52100
61840 technical drawing 61840 standard 200.00 250.00 24.00 76000 95000 2.1 2.6 J 2300 AISI52100 AISI52100 AISI52100
61840 MB C3 technical drawing 61840 MB C3 standard 200.00 250.00 24.00 76000 95000 2.1 2.6 MB 2300 AISI52100 AISI52100 AISI52100
61940 MB C3 technical drawing 61940 MB C3 standard 200.00 280.00 38.00 112000 132000 2 2.4 MB 6600 AISI52100 AISI52100 AISI52100
61940 MA C3 technical drawing 61940 MA C3 standard 200.00 280.00 38.00 112000 132000 2 2.4 MA 6600 AISI52100 AISI52100 AISI52100
61940 M C3 technical drawing 61940 M C3 standard 200.00 280.00 38.00 112000 132000 2 2.4 M 6600 AISI52100 AISI52100 AISI52100
61940 C3 technical drawing 61940 C3 standard 200.00 280.00 38.00 112000 132000 2 2.4 J 6600 AISI52100 AISI52100 AISI52100
61940 MB technical drawing 61940 MB standard 200.00 280.00 38.00 112000 132000 2 2.4 MB 6600 AISI52100 AISI52100 AISI52100
61940 MA technical drawing 61940 MA standard 200.00 280.00 38.00 112000 132000 2 2.4 MA 6600 AISI52100 AISI52100 AISI52100
61940 M technical drawing 61940 M standard 200.00 280.00 38.00 112000 132000 2 2.4 M 6600 AISI52100 AISI52100 AISI52100
61940 technical drawing 61940 standard 200.00 280.00 38.00 112000 132000 2 2.4 J 6600 AISI52100 AISI52100 AISI52100
61844 MA C3 technical drawing 61844 MA C3 standard 220.00 270.00 24.00 78000 102000 1.9 2.4 MA 2530 AISI52100 AISI52100 AISI52100
61844 M C3 technical drawing 61844 M C3 standard 220.00 270.00 24.00 78000 102000 1.9 2.4 M 2530 AISI52100 AISI52100 AISI52100
61844 MB technical drawing 61844 MB standard 220.00 270.00 24.00 78000 102000 1.9 2.4 MB 2530 AISI52100 AISI52100 AISI52100
61844 MA technical drawing 61844 MA standard 220.00 270.00 24.00 78000 102000 1.9 2.4 MA 2530 AISI52100 AISI52100 AISI52100
61844 M technical drawing 61844 M standard 220.00 270.00 24.00 78000 102000 1.9 2.4 M 2530 AISI52100 AISI52100 AISI52100
61844 MB C3 technical drawing 61844 MB C3 standard 220.00 270.00 24.00 78000 102000 1.9 2.4 MB 2530 AISI52100 AISI52100 AISI52100
61944 MB C3 technical drawing 61944 MB C3 standard 220.00 300.00 38.00 118000 132000 1.9 2.4 MB 7800 AISI52100 AISI52100 AISI52100
61944 MA C3 technical drawing 61944 MA C3 standard 220.00 300.00 38.00 118000 132000 1.9 2.4 MA 7800 AISI52100 AISI52100 AISI52100
61944 M C3 technical drawing 61944 M C3 standard 220.00 300.00 38.00 118000 132000 1.9 2.4 M 7800 AISI52100 AISI52100 AISI52100
61944 MB technical drawing 61944 MB standard 220.00 300.00 38.00 118000 132000 1.9 2.4 MB 7800 AISI52100 AISI52100 AISI52100
61944 MA technical drawing 61944 MA standard 220.00 300.00 38.00 118000 132000 1.9 2.4 MA 7800 AISI52100 AISI52100 AISI52100
61944 M technical drawing 61944 M standard 220.00 300.00 38.00 118000 132000 1.9 2.4 M 7800 AISI52100 AISI52100 AISI52100
61848 MA C3 technical drawing 61848 MA C3 standard 240.00 300.00 28.00 108000 139000 1.8 2.1 MA 3840 AISI52100 AISI52100 AISI52100
61848 M C3 technical drawing 61848 M C3 standard 240.00 300.00 28.00 108000 139000 1.8 2.1 M 3840 AISI52100 AISI52100 AISI52100
61848 MB C3 technical drawing 61848 MB C3 standard 240.00 300.00 28.00 108000 139000 1.8 2.1 MB 3840 AISI52100 AISI52100 AISI52100
61848 MB technical drawing 61848 MB standard 240.00 300.00 28.00 108000 139000 1.8 2.1 MB 3840 AISI52100 AISI52100 AISI52100
61848 MA technical drawing 61848 MA standard 240.00 300.00 28.00 108000 139000 1.8 2.1 MA 3840 AISI52100 AISI52100 AISI52100
61848 M technical drawing 61848 M standard 240.00 300.00 28.00 108000 139000 1.8 2.1 M 3840 AISI52100 AISI52100 AISI52100
61948 MA C3 technical drawing 61948 MA C3 standard 240.00 320.00 38.00 122000 146000 1.8 2.2 MA 8450 AISI52100 AISI52100 AISI52100
61948 M C3 technical drawing 61948 M C3 standard 240.00 320.00 38.00 122000 146000 1.8 2.2 M 8450 AISI52100 AISI52100 AISI52100
61948 MB C3 technical drawing 61948 MB C3 standard 240.00 320.00 38.00 122000 146000 1.8 2.2 MB 8450 AISI52100 AISI52100 AISI52100
61948 MB technical drawing 61948 MB standard 240.00 320.00 38.00 122000 146000 1.8 2.2 MB 8450 AISI52100 AISI52100 AISI52100
61948 MA technical drawing 61948 MA standard 240.00 320.00 38.00 122000 146000 1.8 2.2 MA 8450 AISI52100 AISI52100 AISI52100
61948 M technical drawing 61948 M standard 240.00 320.00 38.00 122000 146000 1.8 2.2 M 8450 AISI52100 AISI52100 AISI52100
61852 M technical drawing 61852 M standard 260.00 320.00 28.00 79500 119000 1.6 2 M 4900 AISI52100 AISI52100 AISI52100
61852 MA technical drawing 61852 MA standard 260.00 320.00 28.00 79500 119000 1.6 2 MA 4900 AISI52100 AISI52100 AISI52100
61852-2RS MA C3 technical drawing 61852-2RS MA C3 standard 260.00 320.00 28.00 79500 119000 1.6 2 MA 4900 AISI52100 AISI52100 AISI52100
61852-2RS M C3 technical drawing 61852-2RS M C3 standard 260.00 320.00 28.00 79500 119000 1.6 2 M 4900 AISI52100 AISI52100 AISI52100
61852 MB C3 technical drawing 61852 MB C3 standard 260.00 320.00 28.00 79500 119000 1.6 2 MB 4900 AISI52100 AISI52100 AISI52100
61852 MA C3 technical drawing 61852 MA C3 standard 260.00 320.00 28.00 79500 119000 1.6 2 MA 4900 AISI52100 AISI52100 AISI52100
61852 M C3 technical drawing 61852 M C3 standard 260.00 320.00 28.00 79500 119000 1.6 2 M 4900 AISI52100 AISI52100 AISI52100
61852-2RS MB C3 technical drawing 61852-2RS MB C3 standard 260.00 320.00 28.00 79500 119000 1.6 2 MB 4900 AISI52100 AISI52100 AISI52100
61852 MB-2RS technical drawing 61852 MB-2RS standard 260.00 320.00 28.00 79500 119000 1.6 2 MB 4900 AISI52100 AISI52100 AISI52100
61852 MA-2RS technical drawing 61852 MA-2RS standard 260.00 320.00 28.00 79500 119000 1.6 2 MA 4900 AISI52100 AISI52100 AISI52100
61852 M-2RS technical drawing 61852 M-2RS standard 260.00 320.00 28.00 79500 119000 1.6 2 M 4900 AISI52100 AISI52100 AISI52100
61852 MB technical drawing 61852 MB standard 260.00 320.00 28.00 79500 119000 1.6 2 MB 4900 AISI52100 AISI52100 AISI52100
61952 MA C3 technical drawing 61952 MA C3 standard 260.00 360.00 46.00 163000 200000 1.6 1.9 MA 14500 AISI52100 AISI52100 AISI52100
61952 MB C3 technical drawing 61952 MB C3 standard 260.00 360.00 46.00 163000 200000 1.6 1.9 MB 14500 AISI52100 AISI52100 AISI52100
61952 M C3 technical drawing 61952 M C3 standard 260.00 360.00 46.00 163000 200000 1.6 1.9 M 14500 AISI52100 AISI52100 AISI52100
61952 MB technical drawing 61952 MB standard 260.00 360.00 46.00 163000 200000 1.6 1.9 MB 14500 AISI52100 AISI52100 AISI52100
61952 MA technical drawing 61952 MA standard 260.00 360.00 46.00 163000 200000 1.6 1.9 MA 14500 AISI52100 AISI52100 AISI52100
61952 M technical drawing 61952 M standard 260.00 360.00 46.00 163000 200000 1.6 1.9 M 14500 AISI52100 AISI52100 AISI52100
61856 MB C3 technical drawing 61856 MB C3 standard 280.00 350.00 33.00 102000 149000 1.5 1.8 MB 7300 AISI52100 AISI52100 AISI52100
61856 MA C3 technical drawing 61856 MA C3 standard 280.00 350.00 33.00 102000 149000 1.5 1.8 MA 7300 AISI52100 AISI52100 AISI52100
61856 M C3 technical drawing 61856 M C3 standard 280.00 350.00 33.00 102000 149000 1.5 1.8 M 7300 AISI52100 AISI52100 AISI52100
61856 MB technical drawing 61856 MB standard 280.00 350.00 33.00 102000 149000 1.5 1.8 MB 7300 AISI52100 AISI52100 AISI52100
61856 MA technical drawing 61856 MA standard 280.00 350.00 33.00 102000 149000 1.5 1.8 MA 7300 AISI52100 AISI52100 AISI52100
61856 M technical drawing 61856 M standard 280.00 350.00 33.00 102000 149000 1.5 1.8 M 7300 AISI52100 AISI52100 AISI52100
61956 M technical drawing 61956 M standard 280.00 380.00 46.00 166000 212000 1.5 1.8 M 15000 AISI52100 AISI52100 AISI52100
61956 MB C3 technical drawing 61956 MB C3 standard 280.00 380.00 46.00 166000 212000 1.5 1.8 MB 15000 AISI52100 AISI52100 AISI52100
61956 MA C3 technical drawing 61956 MA C3 standard 280.00 380.00 46.00 166000 212000 1.5 1.8 MA 15000 AISI52100 AISI52100 AISI52100
61956 M C3 technical drawing 61956 M C3 standard 280.00 380.00 46.00 166000 212000 1.5 1.8 M 15000 AISI52100 AISI52100 AISI52100
61956 MB technical drawing 61956 MB standard 280.00 380.00 46.00 166000 212000 1.5 1.8 MB 15000 AISI52100 AISI52100 AISI52100
61956 MA technical drawing 61956 MA standard 280.00 380.00 46.00 166000 212000 1.5 1.8 MA 15000 AISI52100 AISI52100 AISI52100
61860 MB C3 technical drawing 61860 MB C3 standard 300.00 380.00 38.00 144000 189000 1.4 1.6 MB 10400 AISI52100 AISI52100 AISI52100
61860 MA C3 technical drawing 61860 MA C3 standard 300.00 380.00 38.00 144000 189000 1.4 1.6 MA 10400 AISI52100 AISI52100 AISI52100
61860 M C3 technical drawing 61860 M C3 standard 300.00 380.00 38.00 144000 189000 1.4 1.6 M 10400 AISI52100 AISI52100 AISI52100
61860 MB technical drawing 61860 MB standard 300.00 380.00 38.00 144000 189000 1.4 1.6 MB 10400 AISI52100 AISI52100 AISI52100
61860 MA technical drawing 61860 MA standard 300.00 380.00 38.00 144000 189000 1.4 1.6 MA 10400 AISI52100 AISI52100 AISI52100
61860 M technical drawing 61860 M standard 300.00 380.00 38.00 144000 189000 1.4 1.6 M 10400 AISI52100 AISI52100 AISI52100
61960 M technical drawing 61960 M standard 300.00 420.00 56.00 208000 280000 1.3 1.6 M 24000 AISI52100 AISI52100 AISI52100
61960 MB C3 technical drawing 61960 MB C3 standard 300.00 420.00 56.00 208000 280000 1.3 1.6 MB 24000 AISI52100 AISI52100 AISI52100
61960 MA C3 technical drawing 61960 MA C3 standard 300.00 420.00 56.00 208000 280000 1.3 1.6 MA 24000 AISI52100 AISI52100 AISI52100
61960 M C3 technical drawing 61960 M C3 standard 300.00 420.00 56.00 208000 280000 1.3 1.6 M 24000 AISI52100 AISI52100 AISI52100
61960 MB technical drawing 61960 MB standard 300.00 420.00 56.00 208000 280000 1.3 1.6 MB 24000 AISI52100 AISI52100 AISI52100
61960 MA technical drawing 61960 MA standard 300.00 420.00 56.00 208000 280000 1.3 1.6 MA 24000 AISI52100 AISI52100 AISI52100
61864 MB C3 technical drawing 61864 MB C3 standard 320.00 400.00 38.00 134000 180000 1.3 1.6 MB 11000 AISI52100 AISI52100 AISI52100
61864 MA C3 technical drawing 61864 MA C3 standard 320.00 400.00 38.00 134000 180000 1.3 1.6 MA 11000 AISI52100 AISI52100 AISI52100
61864 M C3 technical drawing 61864 M C3 standard 320.00 400.00 38.00 134000 180000 1.3 1.6 M 11000 AISI52100 AISI52100 AISI52100
61864 M technical drawing 61864 M standard 320.00 400.00 38.00 134000 180000 1.3 1.6 M 11000 AISI52100 AISI52100 AISI52100
61864 MB technical drawing 61864 MB standard 320.00 400.00 38.00 134000 180000 1.3 1.6 MB 11000 AISI52100 AISI52100 AISI52100
61864 MA technical drawing 61864 MA standard 320.00 400.00 38.00 134000 180000 1.3 1.6 MA 11000 AISI52100 AISI52100 AISI52100
61964 MB C3 technical drawing 61964 MB C3 standard 320.00 440.00 56.00 212000 290000 1.2 1.5 MB 25500 AISI52100 AISI52100 AISI52100
61964 MA C3 technical drawing 61964 MA C3 standard 320.00 440.00 56.00 212000 290000 1.2 1.5 MA 25500 AISI52100 AISI52100 AISI52100
61964 M C3 technical drawing 61964 M C3 standard 320.00 440.00 56.00 212000 290000 1.2 1.5 M 25500 AISI52100 AISI52100 AISI52100
61964 M technical drawing 61964 M standard 320.00 440.00 56.00 212000 290000 1.2 1.5 M 25500 AISI52100 AISI52100 AISI52100
61964 MB technical drawing 61964 MB standard 320.00 440.00 56.00 212000 290000 1.2 1.5 MB 25500 AISI52100 AISI52100 AISI52100
61964 MA technical drawing 61964 MA standard 320.00 440.00 56.00 212000 290000 1.2 1.5 MA 25500 AISI52100 AISI52100 AISI52100
61868 MA C3 technical drawing 61868 MA C3 standard 340.00 420.00 38.00 137000 196000 1.2 1.5 MA 11500 AISI52100 AISI52100 AISI52100
61868 M C3 technical drawing 61868 M C3 standard 340.00 420.00 38.00 137000 196000 1.2 1.5 M 11500 AISI52100 AISI52100 AISI52100
61868 MB technical drawing 61868 MB standard 340.00 420.00 38.00 137000 196000 1.2 1.5 MB 11500 AISI52100 AISI52100 AISI52100
61868 MA technical drawing 61868 MA standard 340.00 420.00 38.00 137000 196000 1.2 1.5 MA 11500 AISI52100 AISI52100 AISI52100
61868 M technical drawing 61868 M standard 340.00 420.00 38.00 137000 196000 1.2 1.5 M 11500 AISI52100 AISI52100 AISI52100
61868 MB C3 technical drawing 61868 MB C3 standard 340.00 420.00 38.00 137000 196000 1.2 1.5 MB 11500 AISI52100 AISI52100 AISI52100
61968 MB C3 technical drawing 61968 MB C3 standard 340.00 460.00 56.00 220000 310000 1.1 1.4 MB 26500 AISI52100 AISI52100 AISI52100
61968 MA C3 technical drawing 61968 MA C3 standard 340.00 460.00 56.00 220000 310000 1.1 1.4 MA 26500 AISI52100 AISI52100 AISI52100
61968 M C3 technical drawing 61968 M C3 standard 340.00 460.00 56.00 220000 310000 1.1 1.4 M 26500 AISI52100 AISI52100 AISI52100
61968 MB technical drawing 61968 MB standard 340.00 460.00 56.00 220000 310000 1.1 1.4 MB 26500 AISI52100 AISI52100 AISI52100
61968 MA technical drawing 61968 MA standard 340.00 460.00 56.00 220000 310000 1.1 1.4 MA 26500 AISI52100 AISI52100 AISI52100
61968 M technical drawing 61968 M standard 340.00 460.00 56.00 220000 310000 1.1 1.4 M 26500 AISI52100 AISI52100 AISI52100
61872 MB C3 technical drawing 61872 MB C3 standard 360.00 440.00 38.00 140000 200000 1.4 - MB 12000 AISI52100 AISI52100 AISI52100
61872 MA C3 technical drawing 61872 MA C3 standard 360.00 440.00 38.00 140000 200000 1.4 - MA 12000 AISI52100 AISI52100 AISI52100
61872 M C3 technical drawing 61872 M C3 standard 360.00 440.00 38.00 140000 200000 1.4 - M 12000 AISI52100 AISI52100 AISI52100
61872 MB technical drawing 61872 MB standard 360.00 440.00 38.00 140000 200000 1.4 - MB 12000 AISI52100 AISI52100 AISI52100
61872 MA technical drawing 61872 MA standard 360.00 440.00 38.00 140000 200000 1.4 - MA 12000 AISI52100 AISI52100 AISI52100
61872 M technical drawing 61872 M standard 360.00 440.00 38.00 140000 200000 1.4 - M 12000 AISI52100 AISI52100 AISI52100
61972 M technical drawing 61972 M standard 360.00 480.00 56.00 224000 325000 1.4 - M 28000 AISI52100 AISI52100 AISI52100
61972 MB C3 technical drawing 61972 MB C3 standard 360.00 480.00 56.00 224000 325000 1.4 - MB 28000 AISI52100 AISI52100 AISI52100
61972 MA C3 technical drawing 61972 MA C3 standard 360.00 480.00 56.00 224000 325000 1.4 - MA 28000 AISI52100 AISI52100 AISI52100
61972 M C3 technical drawing 61972 M C3 standard 360.00 480.00 56.00 224000 325000 1.4 - M 28000 AISI52100 AISI52100 AISI52100
61972 MB technical drawing 61972 MB standard 360.00 480.00 56.00 224000 325000 1.4 - MB 28000 AISI52100 AISI52100 AISI52100
61972 MA technical drawing 61972 MA standard 360.00 480.00 56.00 224000 325000 1.4 - MA 28000 AISI52100 AISI52100 AISI52100
61876 MB C3 technical drawing 61876 MB C3 standard 380.00 480.00 46.00 190000 280000 1.3 - MB 20000 AISI52100 AISI52100 AISI52100
61876 MA C3 technical drawing 61876 MA C3 standard 380.00 480.00 46.00 190000 280000 1.3 - MA 20000 AISI52100 AISI52100 AISI52100
61876 M C3 technical drawing 61876 M C3 standard 380.00 480.00 46.00 190000 280000 1.3 - M 20000 AISI52100 AISI52100 AISI52100
61876 MB technical drawing 61876 MB standard 380.00 480.00 46.00 190000 280000 1.3 - MB 20000 AISI52100 AISI52100 AISI52100
61876 MA technical drawing 61876 MA standard 380.00 480.00 46.00 190000 280000 1.3 - MA 20000 AISI52100 AISI52100 AISI52100
61876 M technical drawing 61876 M standard 380.00 480.00 46.00 190000 280000 1.3 - M 20000 AISI52100 AISI52100 AISI52100
61880 MB C3 technical drawing 61880 MB C3 standard 400.00 500.00 46.00 190000 290000 1.3 - MB 20500 AISI52100 AISI52100 AISI52100
61880 MA C3 technical drawing 61880 MA C3 standard 400.00 500.00 46.00 190000 290000 1.3 - MA 20500 AISI52100 AISI52100 AISI52100
61880 M C3 technical drawing 61880 M C3 standard 400.00 500.00 46.00 190000 290000 1.3 - M 20500 AISI52100 AISI52100 AISI52100
61880 MB technical drawing 61880 MB standard 400.00 500.00 46.00 190000 290000 1.3 - MB 20500 AISI52100 AISI52100 AISI52100
61880 MA technical drawing 61880 MA standard 400.00 500.00 46.00 190000 290000 1.3 - MA 20500 AISI52100 AISI52100 AISI52100
61880 M technical drawing 61880 M standard 400.00 500.00 46.00 190000 290000 1.3 - M 20500 AISI52100 AISI52100 AISI52100
61884 MB C3 technical drawing 61884 MB C3 standard 420.00 520.00 46.00 193000 300000 1.2 - MB 21500 AISI52100 AISI52100 AISI52100
61884 MA C3 technical drawing 61884 MA C3 standard 420.00 520.00 46.00 193000 300000 1.2 - MA 21500 AISI52100 AISI52100 AISI52100
61884 M C3 technical drawing 61884 M C3 standard 420.00 520.00 46.00 193000 300000 1.2 - M 21500 AISI52100 AISI52100 AISI52100
61884 MB technical drawing 61884 MB standard 420.00 520.00 46.00 193000 300000 1.2 - MB 21500 AISI52100 AISI52100 AISI52100
61884 MA technical drawing 61884 MA standard 420.00 520.00 46.00 193000 300000 1.2 - MA 21500 AISI52100 AISI52100 AISI52100
61884 M technical drawing 61884 M standard 420.00 520.00 46.00 193000 300000 1.2 - M 21500 AISI52100 AISI52100 AISI52100
61888 MB C3 technical drawing 61888 MB C3 standard 440.00 540.00 46.00 228000 355000 2.6 - MB 23800 AISI52100 AISI52100 AISI52100
61888 MA C3 technical drawing 61888 MA C3 standard 440.00 540.00 46.00 228000 355000 2.6 - MA 23800 AISI52100 AISI52100 AISI52100
61888 M C3 technical drawing 61888 M C3 standard 440.00 540.00 46.00 228000 355000 2.6 - M 23800 AISI52100 AISI52100 AISI52100
61888 MB technical drawing 61888 MB standard 440.00 540.00 46.00 228000 355000 2.6 - MB 23800 AISI52100 AISI52100 AISI52100
61888 MA technical drawing 61888 MA standard 440.00 540.00 46.00 228000 355000 2.6 - MA 23800 AISI52100 AISI52100 AISI52100
61888 M technical drawing 61888 M standard 440.00 540.00 46.00 228000 355000 2.6 - M 23800 AISI52100 AISI52100 AISI52100
61892 MB C3 technical drawing 61892 MB C3 standard 460.00 580.00 56.00 290000 480000 2.4 - MB 35800 AISI52100 AISI52100 AISI52100
61892 MA C3 technical drawing 61892 MA C3 standard 460.00 580.00 56.00 290000 480000 2.4 - MA 35800 AISI52100 AISI52100 AISI52100
61892 M C3 technical drawing 61892 M C3 standard 460.00 580.00 56.00 290000 480000 2.4 - M 35800 AISI52100 AISI52100 AISI52100
61892 MB technical drawing 61892 MB standard 460.00 580.00 56.00 290000 480000 2.4 - MB 35800 AISI52100 AISI52100 AISI52100
61892 MA technical drawing 61892 MA standard 460.00 580.00 56.00 290000 480000 2.4 - MA 35800 AISI52100 AISI52100 AISI52100
61892 M technical drawing 61892 M standard 460.00 580.00 56.00 290000 480000 2.4 - M 35800 AISI52100 AISI52100 AISI52100
61896 MB C3 technical drawing 61896 MB C3 standard 480.00 600.00 56.00 290000 500000 2.2 - MB 37300 AISI52100 AISI52100 AISI52100
61896 MA C3 technical drawing 61896 MA C3 standard 480.00 600.00 56.00 290000 500000 2.2 - MA 37300 AISI52100 AISI52100 AISI52100
61896 M C3 technical drawing 61896 M C3 standard 480.00 600.00 56.00 290000 500000 2.2 - M 37300 AISI52100 AISI52100 AISI52100
61896 MB technical drawing 61896 MB standard 480.00 600.00 56.00 290000 500000 2.2 - MB 37300 AISI52100 AISI52100 AISI52100
61896 MA technical drawing 61896 MA standard 480.00 600.00 56.00 290000 500000 2.2 - MA 37300 AISI52100 AISI52100 AISI52100
61896 M technical drawing 61896 M standard 480.00 600.00 56.00 290000 500000 2.2 - M 37300 AISI52100 AISI52100 AISI52100
618/500 MB C3 technical drawing 618/500 MB C3 standard 500.00 620.00 56.00 300000 510000 2 - MB 38700 AISI52100 AISI52100 AISI52100
618/500 MA C3 technical drawing 618/500 MA C3 standard 500.00 620.00 56.00 300000 510000 2 - MA 38700 AISI52100 AISI52100 AISI52100
618/500 M C3 technical drawing 618/500 M C3 standard 500.00 620.00 56.00 300000 510000 2 - M 38700 AISI52100 AISI52100 AISI52100
618/500 MB technical drawing 618/500 MB standard 500.00 620.00 56.00 300000 510000 2 - MB 38700 AISI52100 AISI52100 AISI52100
618/500 MA technical drawing 618/500 MA standard 500.00 620.00 56.00 300000 510000 2 - MA 38700 AISI52100 AISI52100 AISI52100
618/500 M technical drawing 618/500 M standard 500.00 620.00 56.00 300000 510000 2 - M 38700 AISI52100 AISI52100 AISI52100
618/530 MA C3 technical drawing 618/530 MA C3 standard 530.00 650.00 56.00 305000 550000 2 - MA 41300 AISI52100 AISI52100 AISI52100
618/530 M C3 technical drawing 618/530 M C3 standard 530.00 650.00 56.00 305000 550000 2 - M 41300 AISI52100 AISI52100 AISI52100
618/530 MB C3 technical drawing 618/530 MB C3 standard 530.00 650.00 56.00 305000 550000 2 - MB 41300 AISI52100 AISI52100 AISI52100
618/530 MB technical drawing 618/530 MB standard 530.00 650.00 56.00 305000 550000 2 - MB 41300 AISI52100 AISI52100 AISI52100
618/530 MA technical drawing 618/530 MA standard 530.00 650.00 56.00 305000 550000 2 - MA 41300 AISI52100 AISI52100 AISI52100
618/530 M technical drawing 618/530 M standard 530.00 650.00 56.00 305000 550000 2 - M 41300 AISI52100 AISI52100 AISI52100
619/530 MA C3 technical drawing 619/530 MA C3 standard 530.00 710.00 82.00 468000 885000 7 8.5 MA 91600 AISI52100 AISI52100 AISI52100
619/530 M C3 technical drawing 619/530 M C3 standard 530.00 710.00 82.00 468000 885000 7 8.5 M 91600 AISI52100 AISI52100 AISI52100
619/530 MB C3 technical drawing 619/530 MB C3 standard 530.00 710.00 82.00 468000 885000 7 8.5 MB 91600 AISI52100 AISI52100 AISI52100
619/530 MB technical drawing 619/530 MB standard 530.00 710.00 82.00 468000 885000 7 8.5 MB 91600 AISI52100 AISI52100 AISI52100
619/530 MA technical drawing 619/530 MA standard 530.00 710.00 82.00 468000 885000 7 8.5 MA 91600 AISI52100 AISI52100 AISI52100
619/530 M technical drawing 619/530 M standard 530.00 710.00 82.00 468000 885000 7 8.5 M 91600 AISI52100 AISI52100 AISI52100
618/560 MB C3 technical drawing 618/560 MB C3 standard 560.00 680.00 56.00 310000 560000 1.9 - MB 35100 AISI52100 AISI52100 AISI52100
618/560 MA C3 technical drawing 618/560 MA C3 standard 560.00 680.00 56.00 310000 560000 1.9 - MA 35100 AISI52100 AISI52100 AISI52100
618/560 M C3 technical drawing 618/560 M C3 standard 560.00 680.00 56.00 310000 560000 1.9 - M 35100 AISI52100 AISI52100 AISI52100
618/560 MB technical drawing 618/560 MB standard 560.00 680.00 56.00 310000 560000 1.9 - MB 35100 AISI52100 AISI52100 AISI52100
618/560 MA technical drawing 618/560 MA standard 560.00 680.00 56.00 310000 560000 1.9 - MA 35100 AISI52100 AISI52100 AISI52100
618/560 M technical drawing 618/560 M standard 560.00 680.00 56.00 310000 560000 1.9 - M 35100 AISI52100 AISI52100 AISI52100
619/560 M technical drawing 619/560 M standard 560.00 750.00 85.00 475000 925000 6.7 8 M 11000 AISI52100 AISI52100 AISI52100
619/560 MB C3 technical drawing 619/560 MB C3 standard 560.00 750.00 85.00 475000 925000 6.7 8 MB 11000 AISI52100 AISI52100 AISI52100
619/560 MA C3 technical drawing 619/560 MA C3 standard 560.00 750.00 85.00 475000 925000 6.7 8 MA 11000 AISI52100 AISI52100 AISI52100
619/560 M C3 technical drawing 619/560 M C3 standard 560.00 750.00 85.00 475000 925000 6.7 8 M 11000 AISI52100 AISI52100 AISI52100
619/560 MB technical drawing 619/560 MB standard 560.00 750.00 85.00 475000 925000 6.7 8 MB 11000 AISI52100 AISI52100 AISI52100
619/560 MA technical drawing 619/560 MA standard 560.00 750.00 85.00 475000 925000 6.7 8 MA 11000 AISI52100 AISI52100 AISI52100
618/600 MB C3 technical drawing 618/600 MB C3 standard 600.00 73.00 60.00 355000 670000 1.8 - MB 54200 AISI52100 AISI52100 AISI52100
618/600 MA C3 technical drawing 618/600 MA C3 standard 600.00 73.00 60.00 355000 670000 1.8 - MA 54200 AISI52100 AISI52100 AISI52100
618/600 M C3 technical drawing 618/600 M C3 standard 600.00 73.00 60.00 355000 670000 1.8 - M 54200 AISI52100 AISI52100 AISI52100
618/600 MB technical drawing 618/600 MB standard 600.00 73.00 60.00 355000 670000 1.8 - MB 54200 AISI52100 AISI52100 AISI52100
618/600 MA technical drawing 618/600 MA standard 600.00 73.00 60.00 355000 670000 1.8 - MA 54200 AISI52100 AISI52100 AISI52100
618/600 M technical drawing 618/600 M standard 600.00 73.00 60.00 355000 670000 1.8 - M 54200 AISI52100 AISI52100 AISI52100
618/630 MA C3 technical drawing 618/630 MA C3 standard 630.00 780.00 69.00 400000 780000 1.6 - MA 75900 AISI52100 AISI52100 AISI52100
618/630 M C3 technical drawing 618/630 M C3 standard 630.00 780.00 69.00 400000 780000 1.6 - M 75900 AISI52100 AISI52100 AISI52100
618/630 MB C3 technical drawing 618/630 MB C3 standard 630.00 780.00 69.00 400000 780000 1.6 - MB 75900 AISI52100 AISI52100 AISI52100
618/630 MB technical drawing 618/630 MB standard 630.00 780.00 69.00 400000 780000 1.6 - MB 75900 AISI52100 AISI52100 AISI52100
618/630 MA technical drawing 618/630 MA standard 630.00 780.00 69.00 400000 780000 1.6 - MA 75900 AISI52100 AISI52100 AISI52100
618/630 M technical drawing 618/630 M standard 630.00 780.00 69.00 400000 780000 1.6 - M 75900 AISI52100 AISI52100 AISI52100
619/630 MA C3 technical drawing 619/630 MA C3 standard 630.00 850.00 100.00 610000 133000 6 7.1 MA 16300 AISI52100 AISI52100 AISI52100
619/630 M C3 technical drawing 619/630 M C3 standard 630.00 850.00 100.00 610000 133000 6 7.1 M 16300 AISI52100 AISI52100 AISI52100
619/630 MB C3 technical drawing 619/630 MB C3 standard 630.00 850.00 100.00 610000 133000 6 7.1 MB 16300 AISI52100 AISI52100 AISI52100
619/630 MB technical drawing 619/630 MB standard 630.00 850.00 100.00 610000 133000 6 7.1 MB 16300 AISI52100 AISI52100 AISI52100
619/630 MA technical drawing 619/630 MA standard 630.00 850.00 100.00 610000 133000 6 7.1 MA 16300 AISI52100 AISI52100 AISI52100
619/630 M technical drawing 619/630 M standard 630.00 850.00 100.00 610000 133000 6 7.1 M 16300 AISI52100 AISI52100 AISI52100
618/670 MB C3 technical drawing 618/670 MB C3 standard 670.00 820.00 69.00 405000 815000 1.5 - MB 80400 AISI52100 AISI52100 AISI52100
618/670 MA C3 technical drawing 618/670 MA C3 standard 670.00 820.00 69.00 405000 815000 1.5 - MA 80400 AISI52100 AISI52100 AISI52100
618/670 M C3 technical drawing 618/670 M C3 standard 670.00 820.00 69.00 405000 815000 1.5 - M 80400 AISI52100 AISI52100 AISI52100
618/670 MB technical drawing 618/670 MB standard 670.00 820.00 69.00 405000 815000 1.5 - MB 80400 AISI52100 AISI52100 AISI52100
618/670 MA technical drawing 618/670 MA standard 670.00 820.00 69.00 405000 815000 1.5 - MA 80400 AISI52100 AISI52100 AISI52100
618/670 M technical drawing 618/670 M standard 670.00 820.00 69.00 405000 815000 1.5 - M 80400 AISI52100 AISI52100 AISI52100
619/670 M technical drawing 619/670 M standard 670.00 900.00 103.00 670000 145000 5.3 6.3 M 19400 AISI52100 AISI52100 AISI52100
619/670 MB C3 technical drawing 619/670 MB C3 standard 670.00 900.00 103.00 670000 145000 5.3 6.3 MB 19400 AISI52100 AISI52100 AISI52100
619/670 MA C3 technical drawing 619/670 MA C3 standard 670.00 900.00 103.00 670000 145000 5.3 6.3 MA 19400 AISI52100 AISI52100 AISI52100
619/670 M C3 technical drawing 619/670 M C3 standard 670.00 900.00 103.00 670000 145000 5.3 6.3 M 19400 AISI52100 AISI52100 AISI52100
619/670 MB technical drawing 619/670 MB standard 670.00 900.00 103.00 670000 145000 5.3 6.3 MB 19400 AISI52100 AISI52100 AISI52100
619/670 MA technical drawing 619/670 MA standard 670.00 900.00 103.00 670000 145000 5.3 6.3 MA 19400 AISI52100 AISI52100 AISI52100
618/710 MB C3 technical drawing 618/710 MB C3 standard 710.00 870.00 74.00 465000 980000 1.4 - MB 96000 AISI52100 AISI52100 AISI52100
618/710 MA C3 technical drawing 618/710 MA C3 standard 710.00 870.00 74.00 465000 980000 1.4 - MA 96000 AISI52100 AISI52100 AISI52100
618/710 M C3 technical drawing 618/710 M C3 standard 710.00 870.00 74.00 465000 980000 1.4 - M 96000 AISI52100 AISI52100 AISI52100
618/710 MB technical drawing 618/710 MB standard 710.00 870.00 74.00 465000 980000 1.4 - MB 96000 AISI52100 AISI52100 AISI52100
618/710 MA technical drawing 618/710 MA standard 710.00 870.00 74.00 465000 980000 1.4 - MA 96000 AISI52100 AISI52100 AISI52100
618/710 M technical drawing 618/710 M standard 710.00 870.00 74.00 465000 980000 1.4 - M 96000 AISI52100 AISI52100 AISI52100
619/710 M technical drawing 619/710 M standard 710.00 950.00 106.00 645000 151000 5 6.1 M 21800 AISI52100 AISI52100 AISI52100
619/710 MB C3 technical drawing 619/710 MB C3 standard 710.00 950.00 106.00 645000 151000 5 6.1 MB 21800 AISI52100 AISI52100 AISI52100
619/710 MA C3 technical drawing 619/710 MA C3 standard 710.00 950.00 106.00 645000 151000 5 6.1 MA 21800 AISI52100 AISI52100 AISI52100
619/710 M C3 technical drawing 619/710 M C3 standard 710.00 950.00 106.00 645000 151000 5 6.1 M 21800 AISI52100 AISI52100 AISI52100
619/710 MB technical drawing 619/710 MB standard 710.00 950.00 106.00 645000 151000 5 6.1 MB 21800 AISI52100 AISI52100 AISI52100
619/710 MA technical drawing 619/710 MA standard 710.00 950.00 106.00 645000 151000 5 6.1 MA 21800 AISI52100 AISI52100 AISI52100
618/750 MB C3 technical drawing 618/750 MB C3 standard 750.00 920.00 78.00 510000 1120000 1.3 - MB 144000 AISI52100 AISI52100 AISI52100
618/750 MA C3 technical drawing 618/750 MA C3 standard 750.00 920.00 78.00 510000 1120000 1.3 - MA 144000 AISI52100 AISI52100 AISI52100
618/750 M C3 technical drawing 618/750 M C3 standard 750.00 920.00 78.00 510000 1120000 1.3 - M 144000 AISI52100 AISI52100 AISI52100
618/750 M technical drawing 618/750 M standard 750.00 920.00 78.00 510000 1120000 1.3 - M 144000 AISI52100 AISI52100 AISI52100
618/750 MB technical drawing 618/750 MB standard 750.00 920.00 78.00 510000 1120000 1.3 - MB 144000 AISI52100 AISI52100 AISI52100
618/750 MA technical drawing 618/750 MA standard 750.00 920.00 78.00 510000 1120000 1.3 - MA 144000 AISI52100 AISI52100 AISI52100
619/750 MB C3 technical drawing 619/750 MB C3 standard 750.00 1000.00 112.00 745000 1790000 4.9 5.7 MB 26000 AISI52100 AISI52100 AISI52100
619/750 MA C3 technical drawing 619/750 MA C3 standard 750.00 1000.00 112.00 745000 1790000 4.9 5.7 MA 26000 AISI52100 AISI52100 AISI52100
619/750 M C3 technical drawing 619/750 M C3 standard 750.00 1000.00 112.00 745000 1790000 4.9 5.7 M 26000 AISI52100 AISI52100 AISI52100
619/750 M technical drawing 619/750 M standard 750.00 1000.00 112.00 745000 1790000 4.9 5.7 M 26000 AISI52100 AISI52100 AISI52100
619/750 MB technical drawing 619/750 MB standard 750.00 1000.00 112.00 745000 1790000 4.9 5.7 MB 26000 AISI52100 AISI52100 AISI52100
619/750 MA technical drawing 619/750 MA standard 750.00 1000.00 112.00 745000 1790000 4.9 5.7 MA 26000 AISI52100 AISI52100 AISI52100
618/800 MA C3 technical drawing 618/800 MA C3 standard 800.00 980.00 82.00 550000 1270000 1.3 - MA 136000 AISI52100 AISI52100 AISI52100
618/800 M C3 technical drawing 618/800 M C3 standard 800.00 980.00 82.00 550000 1270000 1.3 - M 136000 AISI52100 AISI52100 AISI52100
618/800 MB technical drawing 618/800 MB standard 800.00 980.00 82.00 550000 1270000 1.3 - MB 136000 AISI52100 AISI52100 AISI52100
618/800 MA technical drawing 618/800 MA standard 800.00 980.00 82.00 550000 1270000 1.3 - MA 136000 AISI52100 AISI52100 AISI52100
618/800 M technical drawing 618/800 M standard 800.00 980.00 82.00 550000 1270000 1.3 - M 136000 AISI52100 AISI52100 AISI52100
618/800 MB C3 technical drawing 618/800 MB C3 standard 800.00 980.00 82.00 550000 1270000 1.3 - MB 136000 AISI52100 AISI52100 AISI52100
619/800 MB C3 technical drawing 619/800 MB C3 standard 800.00 1060.00 115.00 815000 2100000 4.3 5 MB 280000 AISI52100 AISI52100 AISI52100
619/800 MA C3 technical drawing 619/800 MA C3 standard 800.00 1060.00 115.00 815000 2100000 4.3 5 MA 280000 AISI52100 AISI52100 AISI52100
619/800 M C3 technical drawing 619/800 M C3 standard 800.00 1060.00 115.00 815000 2100000 4.3 5 M 280000 AISI52100 AISI52100 AISI52100
619/800 MB technical drawing 619/800 MB standard 800.00 1060.00 115.00 815000 2100000 4.3 5 MB 280000 AISI52100 AISI52100 AISI52100
619/800 MA technical drawing 619/800 MA standard 800.00 1060.00 115.00 815000 2100000 4.3 5 MA 280000 AISI52100 AISI52100 AISI52100
619/800 M technical drawing 619/800 M standard 800.00 1060.00 115.00 815000 2100000 4.3 5 M 280000 AISI52100 AISI52100 AISI52100
618/850 MB C3 technical drawing 618/850 MB C3 standard 850.00 1030.00 82.00 560000 1290000 1.2 - MB 144000 AISI52100 AISI52100 AISI52100
618/850 MA C3 technical drawing 618/850 MA C3 standard 850.00 1030.00 82.00 560000 1290000 1.2 - MA 144000 AISI52100 AISI52100 AISI52100
618/850 M C3 technical drawing 618/850 M C3 standard 850.00 1030.00 82.00 560000 1290000 1.2 - M 144000 AISI52100 AISI52100 AISI52100
618/850 MB technical drawing 618/850 MB standard 850.00 1030.00 82.00 560000 1290000 1.2 - MB 144000 AISI52100 AISI52100 AISI52100
618/850 MA technical drawing 618/850 MA standard 850.00 1030.00 82.00 560000 1290000 1.2 - MA 144000 AISI52100 AISI52100 AISI52100
618/850 M technical drawing 618/850 M standard 850.00 1030.00 82.00 560000 1290000 1.2 - M 144000 AISI52100 AISI52100 AISI52100
619/850 M technical drawing 619/850 M standard 850.00 1120.00 118.00 815000 2150000 4 4.8 M 315000 AISI52100 AISI52100 AISI52100
619/850 MB C3 technical drawing 619/850 MB C3 standard 850.00 1120.00 118.00 815000 2150000 4 4.8 MB 315000 AISI52100 AISI52100 AISI52100
619/850 MA C3 technical drawing 619/850 MA C3 standard 850.00 1120.00 118.00 815000 2150000 4 4.8 MA 315000 AISI52100 AISI52100 AISI52100
619/850 M C3 technical drawing 619/850 M C3 standard 850.00 1120.00 118.00 815000 2150000 4 4.8 M 315000 AISI52100 AISI52100 AISI52100
619/850 MB technical drawing 619/850 MB standard 850.00 1120.00 118.00 815000 2150000 4 4.8 MB 315000 AISI52100 AISI52100 AISI52100
619/850 MA technical drawing 619/850 MA standard 850.00 1120.00 118.00 815000 2150000 4 4.8 MA 315000 AISI52100 AISI52100 AISI52100
618/900 MB C3 technical drawing 618/900 MB C3 standard 900.00 1090.00 85.00 600000 1430000 3.8 4.5 MB 155000 AISI52100 AISI52100 AISI52100
618/900 MA C3 technical drawing 618/900 MA C3 standard 900.00 1090.00 85.00 600000 1430000 3.8 4.5 MA 155000 AISI52100 AISI52100 AISI52100
618/900 M C3 technical drawing 618/900 M C3 standard 900.00 1090.00 85.00 600000 1430000 3.8 4.5 M 155000 AISI52100 AISI52100 AISI52100
618/900 MB technical drawing 618/900 MB standard 900.00 1090.00 85.00 600000 1430000 3.8 4.5 MB 155000 AISI52100 AISI52100 AISI52100
618/900 MA technical drawing 618/900 MA standard 900.00 1090.00 85.00 600000 1430000 3.8 4.5 MA 155000 AISI52100 AISI52100 AISI52100
618/900 M technical drawing 618/900 M standard 900.00 1090.00 85.00 600000 1430000 3.8 4.5 M 155000 AISI52100 AISI52100 AISI52100
619/900 M technical drawing 619/900 M standard 900.00 1180.00 122.00 830000 2270000 3.6 4.4 M 355000 AISI52100 AISI52100 AISI52100
619/900 MB C3 technical drawing 619/900 MB C3 standard 900.00 1180.00 122.00 830000 2270000 3.6 4.4 MB 355000 AISI52100 AISI52100 AISI52100
619/900 MA C3 technical drawing 619/900 MA C3 standard 900.00 1180.00 122.00 830000 2270000 3.6 4.4 MA 355000 AISI52100 AISI52100 AISI52100
619/900 M C3 technical drawing 619/900 M C3 standard 900.00 1180.00 122.00 830000 2270000 3.6 4.4 M 355000 AISI52100 AISI52100 AISI52100
619/900 MB technical drawing 619/900 MB standard 900.00 1180.00 122.00 830000 2270000 3.6 4.4 MB 355000 AISI52100 AISI52100 AISI52100
619/900 MA technical drawing 619/900 MA standard 900.00 1180.00 122.00 830000 2270000 3.6 4.4 MA 355000 AISI52100 AISI52100 AISI52100
618/950 MB C3 technical drawing 618/950 MB C3 standard 950.00 1150.00 90.00 663000 1620000 3.6 4.3 MB 188000 AISI52100 AISI52100 AISI52100
618/950 MA C3 technical drawing 618/950 MA C3 standard 950.00 1150.00 90.00 663000 1620000 3.6 4.3 MA 188000 AISI52100 AISI52100 AISI52100
618/950 M C3 technical drawing 618/950 M C3 standard 950.00 1150.00 90.00 663000 1620000 3.6 4.3 M 188000 AISI52100 AISI52100 AISI52100
618/950 MB technical drawing 618/950 MB standard 950.00 1150.00 90.00 663000 1620000 3.6 4.3 MB 188000 AISI52100 AISI52100 AISI52100
618/950 MA technical drawing 618/950 MA standard 950.00 1150.00 90.00 663000 1620000 3.6 4.3 MA 188000 AISI52100 AISI52100 AISI52100
618/950 M technical drawing 618/950 M standard 950.00 1150.00 90.00 663000 1620000 3.6 4.3 M 188000 AISI52100 AISI52100 AISI52100
619/950 M technical drawing 619/950 M standard 950.00 1250.00 132.00 985000 2850000 3.3 4.1 M 395000 AISI52100 AISI52100 AISI52100
619/950 MB C3 technical drawing 619/950 MB C3 standard 950.00 1250.00 132.00 985000 2850000 3.3 4.1 MB 395000 AISI52100 AISI52100 AISI52100
619/950 MA C3 technical drawing 619/950 MA C3 standard 950.00 1250.00 132.00 985000 2850000 3.3 4.1 MA 395000 AISI52100 AISI52100 AISI52100
619/950 M C3 technical drawing 619/950 M C3 standard 950.00 1250.00 132.00 985000 2850000 3.3 4.1 M 395000 AISI52100 AISI52100 AISI52100
619/950 MB technical drawing 619/950 MB standard 950.00 1250.00 132.00 985000 2850000 3.3 4.1 MB 395000 AISI52100 AISI52100 AISI52100
619/950 MA technical drawing 619/950 MA standard 950.00 1250.00 132.00 985000 2850000 3.3 4.1 MA 395000 AISI52100 AISI52100 AISI52100
618/1000 MB C3 technical drawing 618/1000 MB C3 standard 1000.00 1220.00 100.00 635000 1720000 3.4 4 MB 230000 AISI52100 AISI52100 AISI52100
618/1000 MA C3 technical drawing 618/1000 MA C3 standard 1000.00 1220.00 100.00 635000 1720000 3.4 4 MA 230000 AISI52100 AISI52100 AISI52100
618/1000 M C3 technical drawing 618/1000 M C3 standard 1000.00 1220.00 100.00 635000 1720000 3.4 4 M 230000 AISI52100 AISI52100 AISI52100
618/1000 MB technical drawing 618/1000 MB standard 1000.00 1220.00 100.00 635000 1720000 3.4 4 MB 230000 AISI52100 AISI52100 AISI52100
618/1000 MA technical drawing 618/1000 MA standard 1000.00 1220.00 100.00 635000 1720000 3.4 4 MA 230000 AISI52100 AISI52100 AISI52100
618/1000 M technical drawing 618/1000 M standard 1000.00 1220.00 100.00 635000 1720000 3.4 4 M 230000 AISI52100 AISI52100 AISI52100
619/1000 M technical drawing 619/1000 M standard 1000.00 1320.00 140.00 985000 2880000 3.3 3.9 M 525000 AISI52100 AISI52100 AISI52100
619/1000 MA technical drawing 619/1000 MA standard 1000.00 1320.00 140.00 985000 2880000 3.3 3.9 MA 525000 AISI52100 AISI52100 AISI52100
619/1000 MB technical drawing 619/1000 MB standard 1000.00 1320.00 140.00 985000 2880000 3.3 3.9 MB 525000 AISI52100 AISI52100 AISI52100
619/1000 M C3 technical drawing 619/1000 M C3 standard 1000.00 1320.00 140.00 985000 2880000 3.3 3.9 M 525000 AISI52100 AISI52100 AISI52100
619/1000 MA C3 technical drawing 619/1000 MA C3 standard 1000.00 1320.00 140.00 985000 2880000 3.3 3.9 MA 525000 AISI52100 AISI52100 AISI52100
619/1000 MB C3 technical drawing 619/1000 MB C3 standard 1000.00 1320.00 140.00 985000 2880000 3.3 3.9 MB 525000 AISI52100 AISI52100 AISI52100
