直线轴承

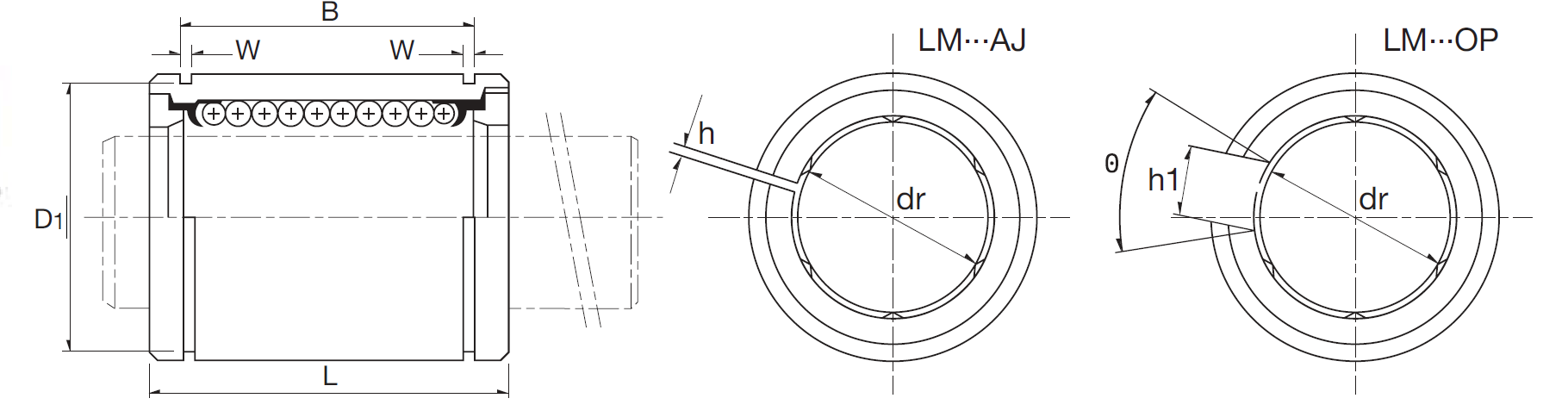

LM系列

Ref	Type	Ball Circuit	Weight	dr	W	D1	h	h1	Tolerance			Radial Clearance	OR Material	Ball Material
Ref	Type	Ball Circuit	Weight	dr	W	D1	h	h1	D	L	B	Radial Clearance	OR Material	Ball Material
LM 4	Standard	4.00	1.4	4.00	-	-	-	-	8	12	-	-	AISI52100	AISI52100
LM 4 UU	Seal	4.00	1.4	4.00	-	-	-	-	8	12	-	-	AISI52100	AISI52100
LM 5 UU	Seal	4.00	4	5.00	1.1	9.6	-	-	10	15	10.2	-3	AISI52100	AISI52100
LM 5	Standard	4.00	4	5.00	1.1	9.6	-	-	10	15	10.2	-3	AISI52100	AISI52100
LM 6	Standard	4.00	8	6.00	1.1	11.5	1	-	12	19	13.5	-5	AISI52100	AISI52100
LM 6-AJ	Adjustable	4.00	8	6.00	1.1	11.5	1	-	12	19	13.5	-5	AISI52100	AISI52100
LM 6 UU	Seal	4.00	8	6.00	1.1	11.5	1	-	12	19	13.5	-5	AISI52100	AISI52100
LM 8S-AJ	Adjustable	4.00	11	8.00	1.1	14.3	1	-	15	17	11.5	-5	AISI52100	AISI52100
LM 8-AJ	Adjustable	4.00	16	8.00	1.1	14.3	1	-	15	24	17.5	-5	AISI52100	AISI52100
LM 8S UU	Seal	4.00	11	8.00	1.1	14.3	1	-	15	17	11.5	-5	AISI52100	AISI52100
LM 8	Standard	4.00	16	8.00	1.1	14.3	1	-	15	24	17.5	-5	AISI52100	AISI52100
LM 8S	Standard	4.00	11	8.00	1.1	14.3	1	-	15	17	11.5	-5	AISI52100	AISI52100
LM 8 UU	Seal	4.00	16	8.00	1.1	14.3	1	-	15	24	17.5	-5	AISI52100	AISI52100
LM 10-AJ	Adjustable	4.00	30	10.00	1.3	18	1		19	29	22	-5	AISI52100	AISI52100
LM10 UU	Seal	4.00	30	10.00	1.3	18	1		19	29	22	-5	AISI52100	AISI52100
LM 10	Standard	4.00	30	10.00	1.3	18	1		19	29	22	-5	AISI52100	AISI52100
LM 12-AJ	Adjustable	4.00	31.5	12.00	1.3	20	1.5	8	21	30	23	-5	AISI52100	AISI52100
LM 12-OP	Open	4.00	31.5	12.00	1.3	20	1.5	8	21	30	23	-5	AISI52100	AISI52100
LM 12	Standard	4.00	31.5	12.00	1.3	20	1.5	8	21	30	23	-5	AISI52100	AISI52100
LM 12 UU	Seal	4.00	31.5	12.00	1.3	20	1.5	8	21	30	23	-5	AISI52100	AISI52100
LM 13	Standard	4.00	43	13.00	1.3	22	1.5	9	23	32	23	-7	AISI52100	AISI52100
LM 13-AJ	Adjustable	4.00	43	13.00	1.3	22	1.5	9	23	32	23	-7	AISI52100	AISI52100
LM 13-OP	Open	4.00	43	13.00	1.3	22	1.5	9	23	32	23	-7	AISI52100	AISI52100
LM 13 UU	Seal	4.00	43	13.00	1.3	22	1.5	9	23	32	23	-7	AISI52100	AISI52100
LM 16 UU	Seal	5.00	69	16.00	1.6	27	1.5	11	28	37	26.5	-7	AISI52100	AISI52100
LM 16-AJ	Adjustable	5.00	69	16.00	1.6	27	1.5	11	28	37	26.5	-7	AISI52100	AISI52100
LM 16-OP	Open	5.00	69	16.00	1.6	27	1.5	11	28	37	26.5	-7	AISI52100	AISI52100
LM 16	Standard	5.00	69	16.00	1.6	27	1.5	11	28	37	26.5	-7	AISI52100	AISI52100
LM 20-AJ	Adjustable	5.00	87	20.00	1.6	30.5	1.5	11	32	42	30.5	-9	AISI52100	AISI52100
LM 20	Standard	5.00	87	20.00	1.6	30.5	1.5	11	32	42	30.5	-9	AISI52100	AISI52100
LM 20-OP	Open	5.00	87	20.00	1.6	30.5	1.5	11	32	42	30.5	-9	AISI52100	AISI52100
LM 20 UU	Seal	5.00	87	20.00	1.6	30.5	1.5	11	32	42	30.5	-9	AISI52100	AISI52100
LM 25-AJ	Adjustable	6.00	220	25.00	1.85	38	2	12	40	59	41	-9	AISI52100	AISI52100
LM 25-OP	Open	6.00	220	25.00	1.85	38	2	12	40	59	41	-9	AISI52100	AISI52100
LM 25	Standard	6.00	220	25.00	1.85	38	2	12	40	59	41	-9	AISI52100	AISI52100
LM 25 UU	Seal	6.00	220	25.00	1.85	38	2	12	40	59	41	-9	AISI52100	AISI52100
LM 30-OP	Open	6.00	250	30.00	1.85	43	2.5	15	45	64	44.5	-9	AISI52100	AISI52100
LM 30	Standard	6.00	250	30.00	1.85	43	2.5	15	45	64	44.5	-9	AISI52100	AISI52100
LM 30 UU	Seal	6.00	250	30.00	1.85	43	2.5	15	45	64	44.5	-9	AISI52100	AISI52100
LM 30-AJ	Adjustable	6.00	250	30.00	1.85	43	2.5	15	45	64	44.5	-9	AISI52100	AISI52100
LM 35-OP	Open	6.00	390	35.00	2.1	49	2.5	17	52	70	49.5	-13	AISI52100	AISI52100
LM 35 UU	Seal	6.00	390	35.00	2.1	49	2.5	17	52	70	49.5	-13	AISI52100	AISI52100
LM 35-AJ	Adjustable	6.00	390	35.00	2.1	49	2.5	17	52	70	49.5	-13	AISI52100	AISI52100
LM 35	Standard	6.00	390	35.00	2.1	49	2.5	17	52	70	49.5	-13	AISI52100	AISI52100
LM 40-OP	Open	6.00	585	40.00	2.1	57	3	20	60	80	60.5	-13	AISI52100	AISI52100
LM 40 UU	Seal	6.00	585	40.00	2.1	57	3	20	60	80	60.5	-13	AISI52100	AISI52100
LM 40	Standard	6.00	585	40.00	2.1	57	3	20	60	80	60.5	-13	AISI52100	AISI52100
LM 40-AJ	Adjustable	6.00	585	40.00	2.1	57	3	20	60	80	60.5	-13	AISI52100	AISI52100
LM 50 UU	Seal	6.00	1580	50.00	2.6	76.5	3	25	80	100	74	-13	AISI52100	AISI52100
LM 50-AJ	Adjustable	6.00	1580	50.00	2.6	76.5	3	25	80	100	74	-13	AISI52100	AISI52100
LM 50-OP	Open	6.00	1580	50.00	2.6	76.5	3	25	80	100	74	-13	AISI52100	AISI52100
LM 50	Standard	6.00	1580	50.00	2.6	76.5	3	25	80	100	74	-13	AISI52100	AISI52100
LM 60	Standard	6.00	2000	60.00	3.15	86.5	3	30	90	110	85	-16	AISI52100	AISI52100
LM 60-AJ	Adjustable	6.00	2000	60.00	3.15	86.5	3	30	90	110	85	-16	AISI52100	AISI52100
LM 60 UU	Seal	6.00	2000	60.00	3.15	86.5	3	30	90	110	85	-16	AISI52100	AISI52100
LM 60-OP	Open	6.00	2000	60.00	3.15	86.5	3	30	90	110	85	-16	AISI52100	AISI52100

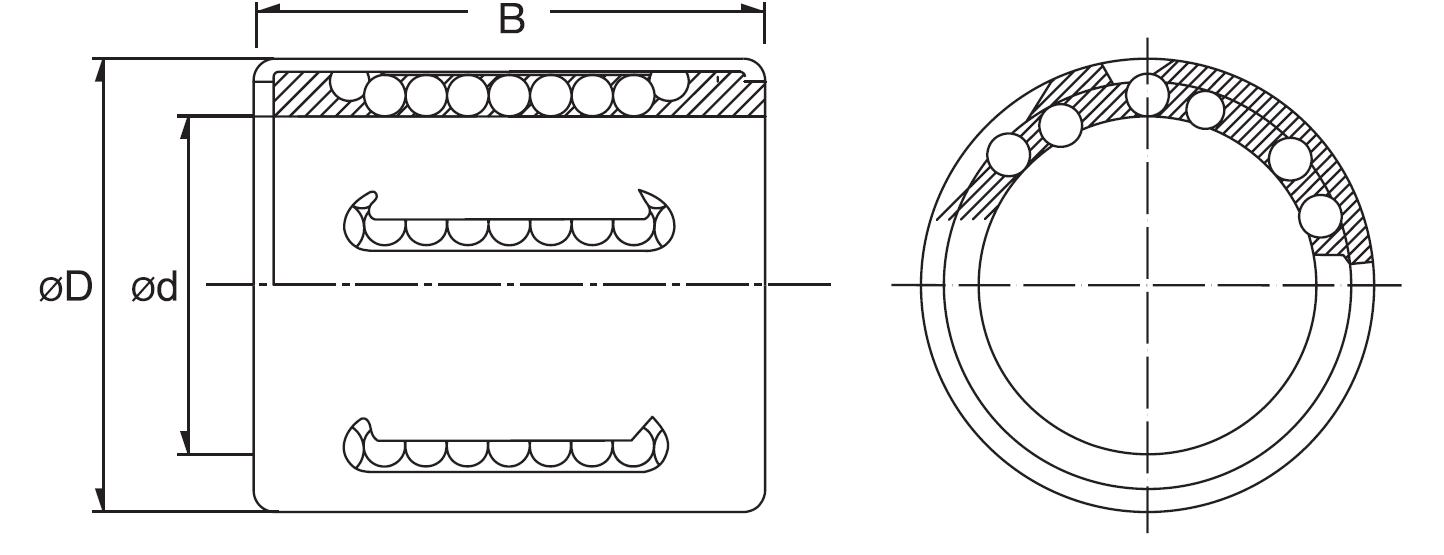

KH系列

Ref	d	D	B	Load Rating		Weight	OR Material	IR Material	Ball Material
Ref	d	D	B	Dynamic	Static	Weight	OR Material	IR Material	Ball Material
KH-0622 PP	6.00	12.00	22.00	400	239	7	AISI52100	AISI52100	AISI52100
KH-0824 PP	8.00	15.00	24.00	435	280	12	AISI52100	AISI52100	AISI52100
KH-1026 PP	10.00	17.00	26.00	500	370	15	AISI52100	AISI52100	AISI52100
KH-1228 PP	12.00	19.00	28.00	620	510	19	AISI52100	AISI52100	AISI52100
KH-1428 PP	14.00	21.00	28.00	620	520	21	AISI52100	AISI52100	AISI52100
KH-1630 PP	16.00	24.00	30.00	800	620	28	AISI52100	AISI52100	AISI52100
KH-2030 PP	20.00	28.00	30.00	950	790	33	AISI52100	AISI52100	AISI52100
KH-2540 PP	25.00	35.00	40.00	1990	1670	66	AISI52100	AISI52100	AISI52100
KH-3050 PP	30.00	40.00	50.00	2800	2700	95	AISI52100	AISI52100	AISI52100
KH-4060 PP	40.00	52.00	60.00	4400	4450	182	AISI52100	AISI52100	AISI52100
KH-5070 PP	50.00	62.00	70.00	5500	6300	252	AISI52100	AISI52100	AISI52100

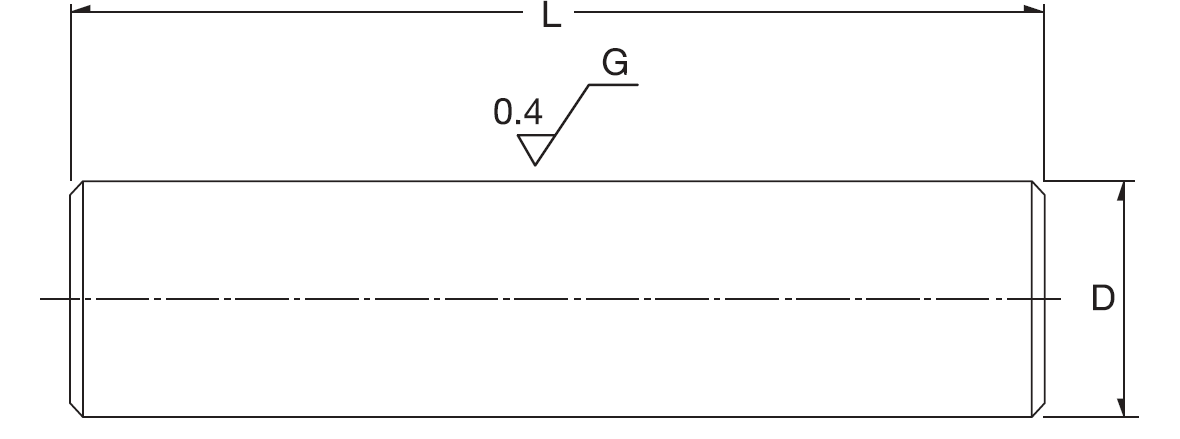

SF系列

Ref	D	Tolerance	Length	Weight	OR Material	IR Material	Ball Material
SF 6	6	-4 to -12	100 to 600	230 g	AISI440	AISI440	AISI440
SF 8	8	-5	800	400 g	AISI440	AISI440	AISI440
SF10	10	-14	200 to 1000	620 g	AISI440	AISI440	AISI440
SF12	12	-6 to -17	1500	890 g	AISI440	AISI440	AISI440
SF13	13	-6 to -17	-	1040 g	AISI440	AISI440	AISI440
SF16	16	-6 to -17	300 to 2000	1580 g	AISI440	AISI440	AISI440
SF20	20	-7 to -21	-	2470 g	AISI440	AISI440	AISI440
SF25	25	-7 to -21	400	3850 g	AISI440	AISI440	AISI440
SF30	30	-7 to -21	500	5550 g	AISI440	AISI440	AISI440
SF35	35	-9 to -25	-	7550 g	AISI440	AISI440	AISI440
SF40	40	-9 to -25	-	9870 g	AISI440	AISI440	AISI440
SF50	50	-9 to -25	600	15400 g	AISI440	AISI440	AISI440
